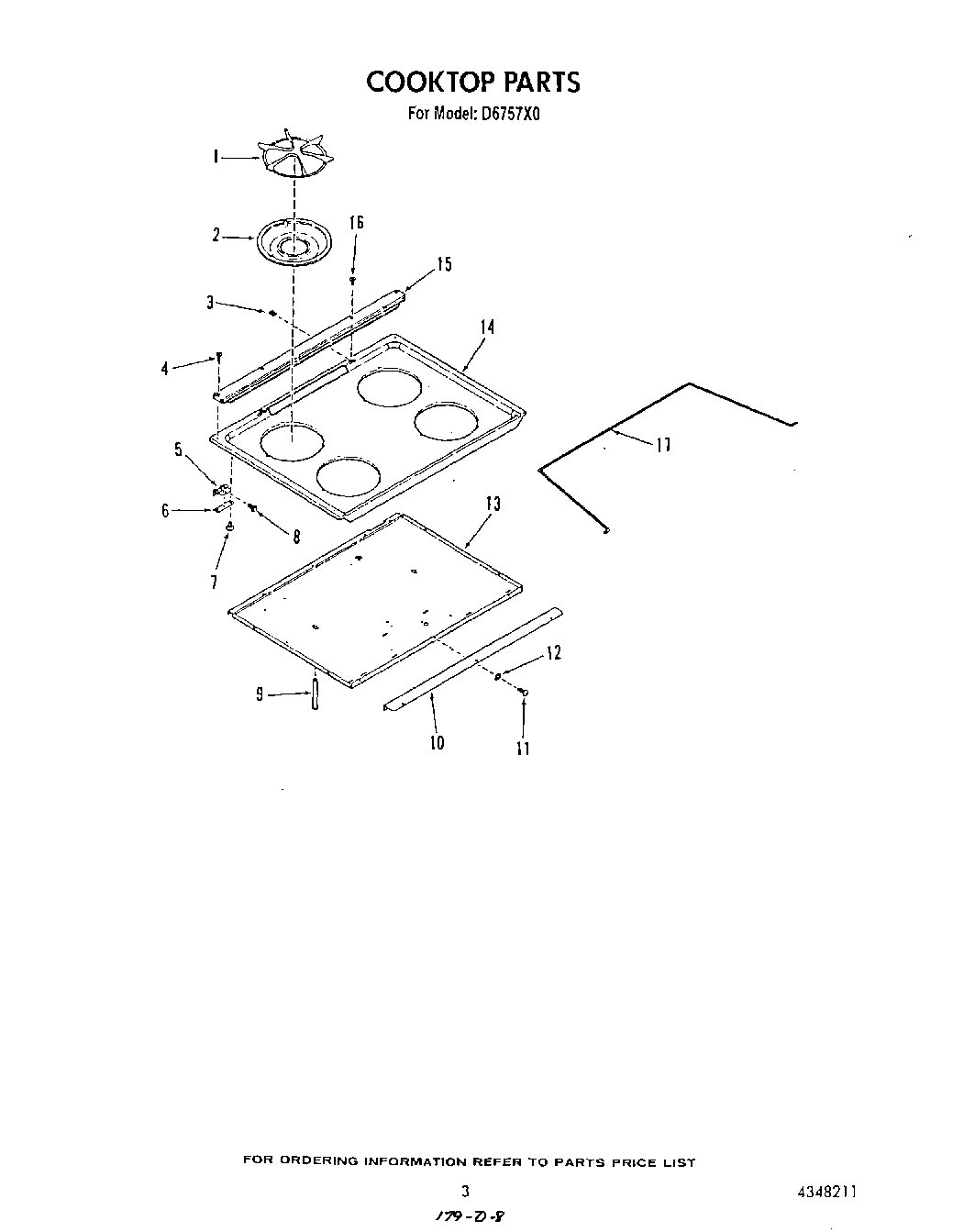

D6757X0 03 – COOK TOP

Products

Position	Product
1	Grate, Burner (4)
2	Pan, Aeration (4)
3	Nut, Speed No.6-32
4	Screw No.6-32×7/8“
5	Hinge (Lt or Rt)
6	Bracket, Mounting-Hinge (Lt or Rt)
7	Screw No.6-32×3/16“
8	W10850756 Whirlpool Screw
9	Raceway (Lt or Rt)
10	Extension-Bottom Burner Box
11	Screw, No.10-32 x 17/32
12	Washer
13	Bottom-Burner Box
14	Cooktop
15	Trim
16	Screw No.6-32×1/2
17	Support-Cooktop
