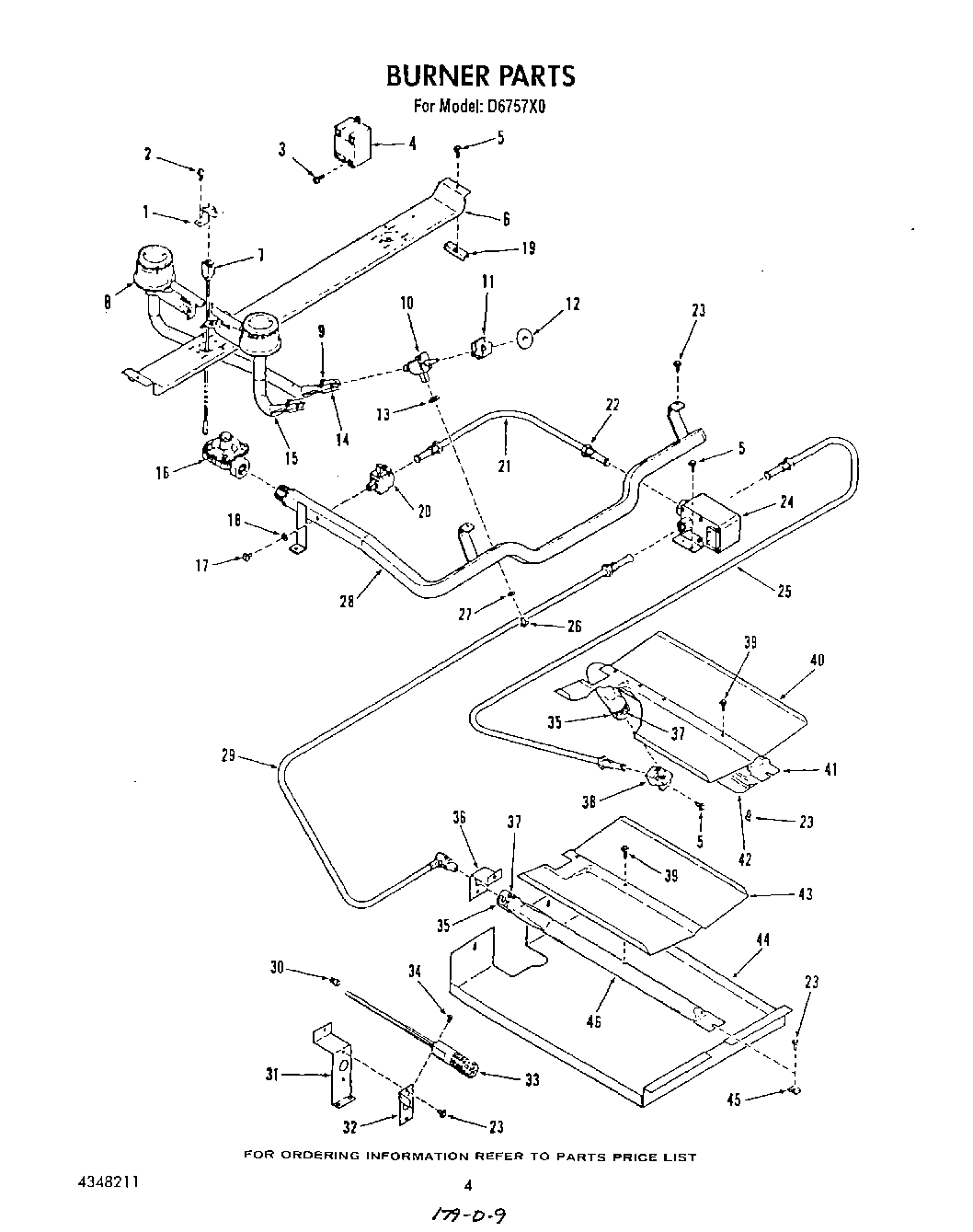

| 1 | Bracket-Ignitor (Lt or Rt) |
| 3 | Screw No.6-32x3/8 |
| 4 | Module-Spark |
| 5 | W10850756 Whirlpool Screw |
| 6 | Support-Top Burner |
| 7 | Electrode-Igniter (Left) |
| 7 | Electrode-Igniter (Right) |
| 8 | Burner, Rear Top (Lt or Rt) |
| 9 | Screw-Adjustment, (Air Shutter) |
| 10 | Valve, Gas (4) |
| 11 | WP4330739 Whirlpool Igniter Switch |
| 12 | Shield-Gas Valve (4) |
| 13 | Seal, Valve-1 ea. Illus. 10 & 20 |
| 14 | Shutter, Air |
| 15 | Burner, Top Front |
| 16 | Regulator-Pressure |
| 19 | Spacer, Support |
| 20 | Valve, Shut Off |
| 21 | Tubing 3/8`` (Shut-Off valve to Control Valve |
| 22 | Nut, Inverted 3/8 |
| 23 | Screw, No.10-32 x 17/32 |
| 24 | Valve, Control |
| 25 | Tubing 3/8``(Valve-Broiler Burner) |
| 26 | Screw, Mounting-1 Each-illus. 10 & 20 |
| 27 | Seal (for No.26) |
| 28 | Manifold Pipe |
| 29 | Tubing 3/8`` W/Orifice Valve/Oven Burner |
| 30 | WP4323866 Whirlpool Connector |
| 31 | Bracket, Mounting |
| 32 | Bracket, Igniter |
| 33 | Ignitor-Bake/Broil |
| 34 | Screw No.10-32x1/4 |
| 35 | Shutter, Air |
| 36 | Bracket-Orifice Fitting/Ov. Burner |
| 37 | Screw, Adjustment-Air Shutter |
| 38 | Fitting-Orifice/-Broiler Burner |
| 39 | WP489128 Whirlpool Refrigerator Screw |
| 41 | Burner, Broil (Inc`s No.40 & No.42) |
| 42 | Baffle/Lower-Broil |
| 43 | Baffle-Oven Burner |
| 44 | Baffle-Oven Burner |
| 45 | Nut, Speed No.10-32 |
| 46 | WPL 4332515 |
