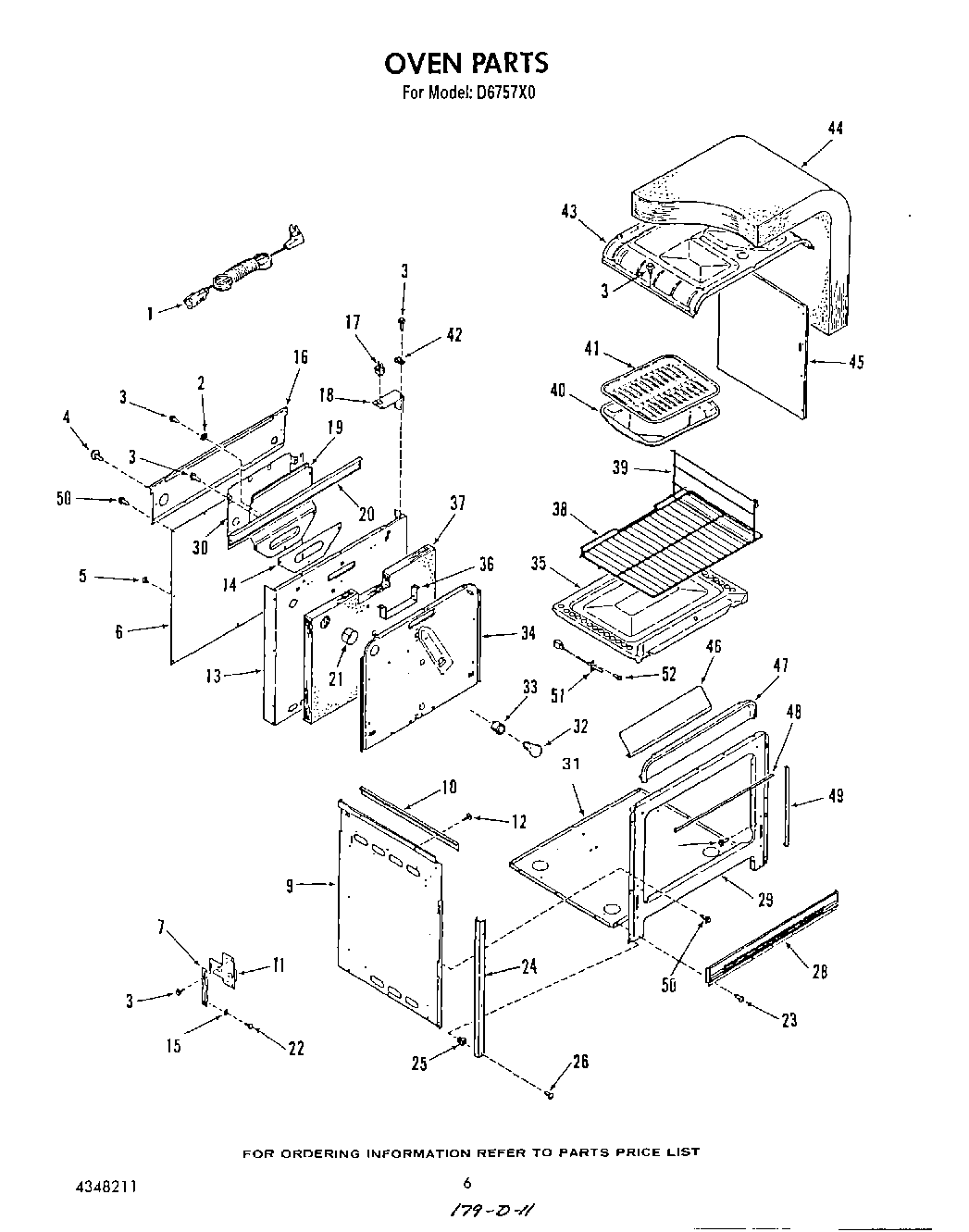

| 1 | Service Cord |
| 2 | Lockwasher |
| 4 | Screw No.10-32x1/4 |
| 5 | Clip |
| 6 | Wire Cover-Rear |
| 7 | Hinge, Lt or Rt |
| 9 | Retainer, Insulat. (Right) |
| 9 | Retainer, Insulat. (Left) |
| 10 | Trim-Bottom Burner Box (Lt or Rt) |
| 11 | Hinge Box Assembly Lt/Rt |
| 12 | Screw, No.10 x 1 |
| 13 | Cover, Back |
| 14 | Seal-Deflector |
| 15 | Washer |
| 16 | Cover, Wire |
| 17 | Disconnect |
| 18 | Bracket |
| 19 | Deflector, Flue |
| 20 | Support, Flue |
| 21 | Retainer, Insul.-Oven Light |
| 22 | Screw, No.10-32 x 17/32 |
| 23 | Screw No.10-32x1/2 |
| 24 | Trim, Side (Right) |
| 24 | Trim, Side (Left) |
| 25 | Nut-Expansion (6) |
| 26 | Screw No.8x5/8 |
| 28 | Trim, Bottom |
| 29 | Frame, Front |
| 30 | Shield, Deflector |
| 31 | Bottom, Main |
| 32 | RANGE ONLY 40W 120V APPL BULB |
| 33 | W10856866 Whirlpool Light Socket |
| 34 | Back, Oven |
| 35 | Bottom, Oven |
| 36 | Retainer, Insul. |
| 37 | Insulation, Back |
| 38 | Rack, Oven (2) |
| 39 | Guide, Oven Rack (Left) |
| 39 | Guide, Oven Rack (Right) |
| 41 | 4396923 Whirlpool Broil Pan Set Gray Porcelain |
| 42 | Clip (For No.1) |
| 43 | Top, Oven |
| 44 | Insulation-Top & Sides |
| 45 | Side, Oven (Right) |
| 45 | Side, Oven (Left) |
| 46 | Shield, Heat |
| 47 | Panel-Broil Front |
| 48 | Seal-Oven Door Top |
| 49 | Seal-Oven Dr. Side (Rt or Lt) |
| 50 | W10850756 Whirlpool Screw |
| 51 | Sensor |
| 52 | Screw |
