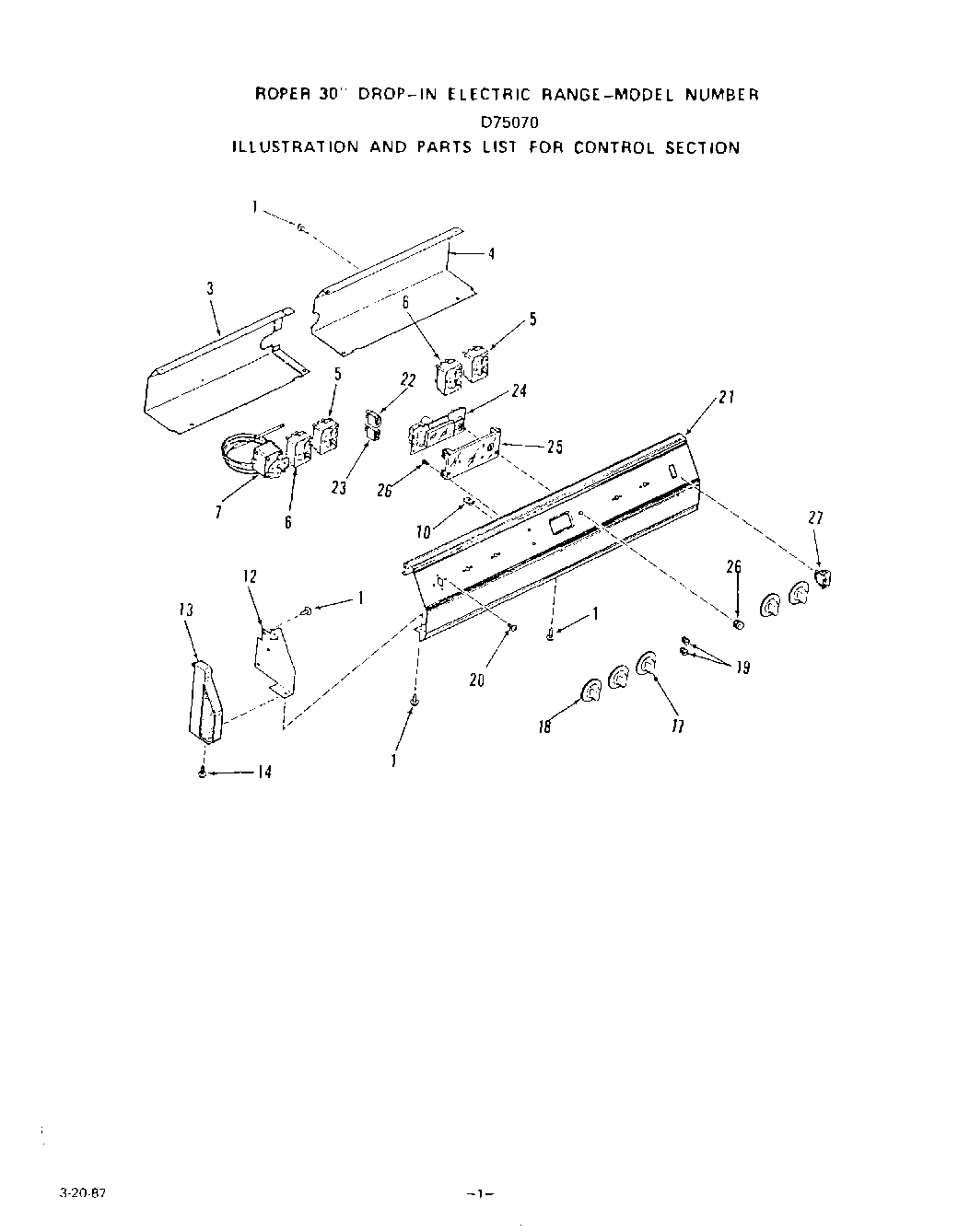

D7507^0 02 – CONTROL

Products

PositionProduct
1WP112432 Whirlpool Nut Assembly
3Cover-Wire Control (Left)
4Cover-Wire Control (Right)
5Infinite Control (Right)
6Infinite Control (Left)
7Thermostat-Oven
10Speed Nut 10 – 32
12Mounting Bracket – End Cap (Right)
12Bracket-Control Panel Mounting
12Mounting Bracket – End Cap (Left)
13Right
13Left
13Cap-End
14Screw 10ABx1/2“
17Knob-Infinite
18Knob-Thermostat
19Lens-Indicator Light
20WPL 78565
21Panel-Control
22Light-Indicator (Surface)
23Light-Indicator
24Clock
25Clock Lens
26Knob-Clock
27Switch-Oven Light
