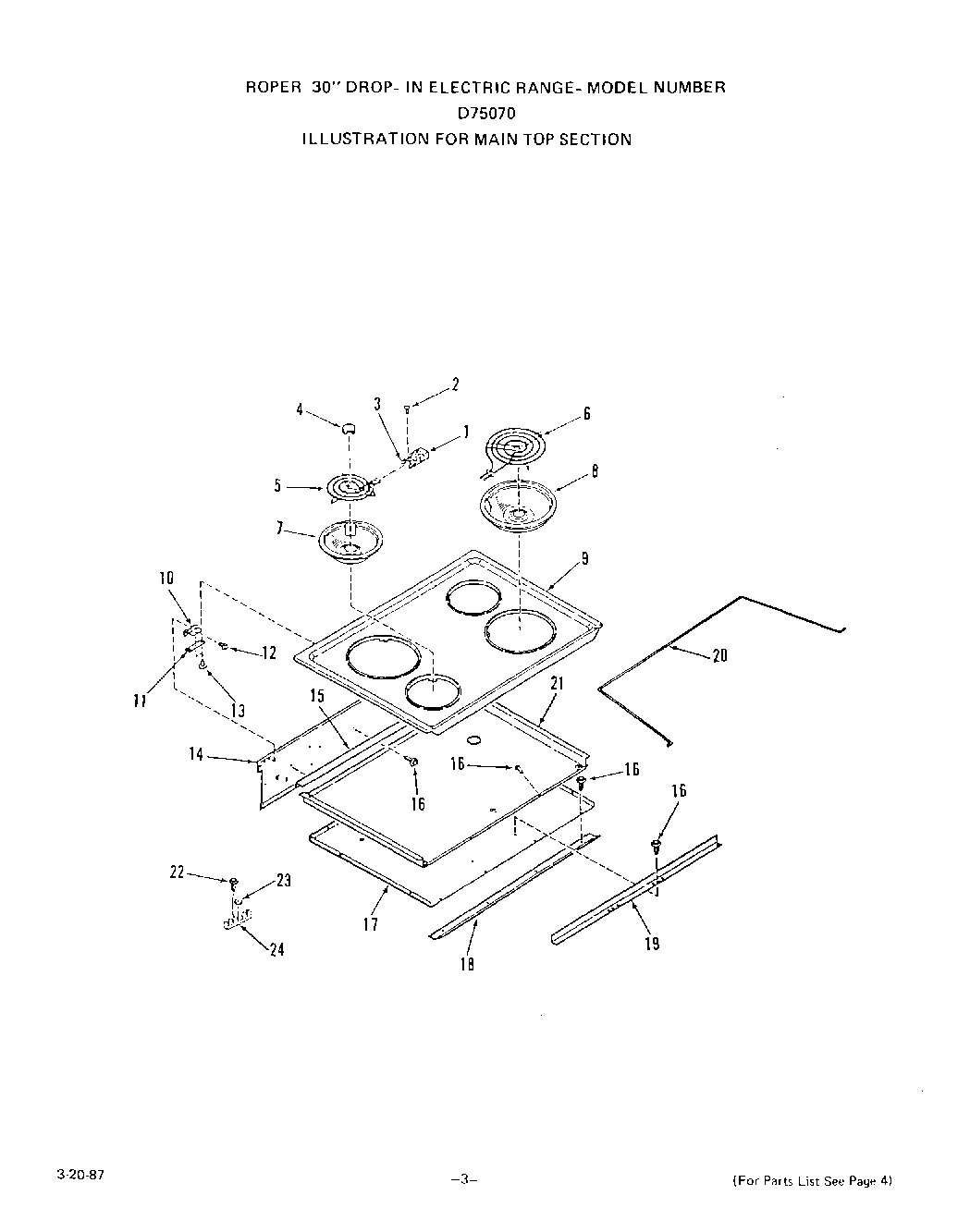

D7507^0 04 – MAIN TOP

Products

Position	Product
1	Term. Block w/Leads-All 2101 Models
2	Screw 7-32×5/16“(2 Req) All 2101 Models
3	Bracket-Term. Block (2 Req) All 2101 Mod.
4	Medallion (4 Required)
5	6“ Surface Unit (Lt. Front & Rt. Rear)
6	8“ Surface Unit (Rt. Front & Lt. Rear)
7	6“ Burner Bowl (1 Req) All 2101 Models
8	8“ Burner Bowl (1 Req) All 2101 Models
9	Almond
9	White
9	Chrome
9	Top-Main
10	Hinge (Lt or Rt)
11	Mounting Bracket – Hinge (Lt or Rt)
12	Screw 10-32×5/16“
13	Screw 6-32×3/16“
14	Cover-Upper Wire
15	Rear Wire Shield
16	Screw 10-16×7/16“
17	Bottom-Burner Box
18	Extension-Burner Box
19	Shield-Wire
20	Rod-Main Top Support
21	Top-Burner Box
22	Screw 10-32×1“
23	Hex Nut 10-32
24	Junction Block
