D7507W0 02 – CONTROL
Written by
in

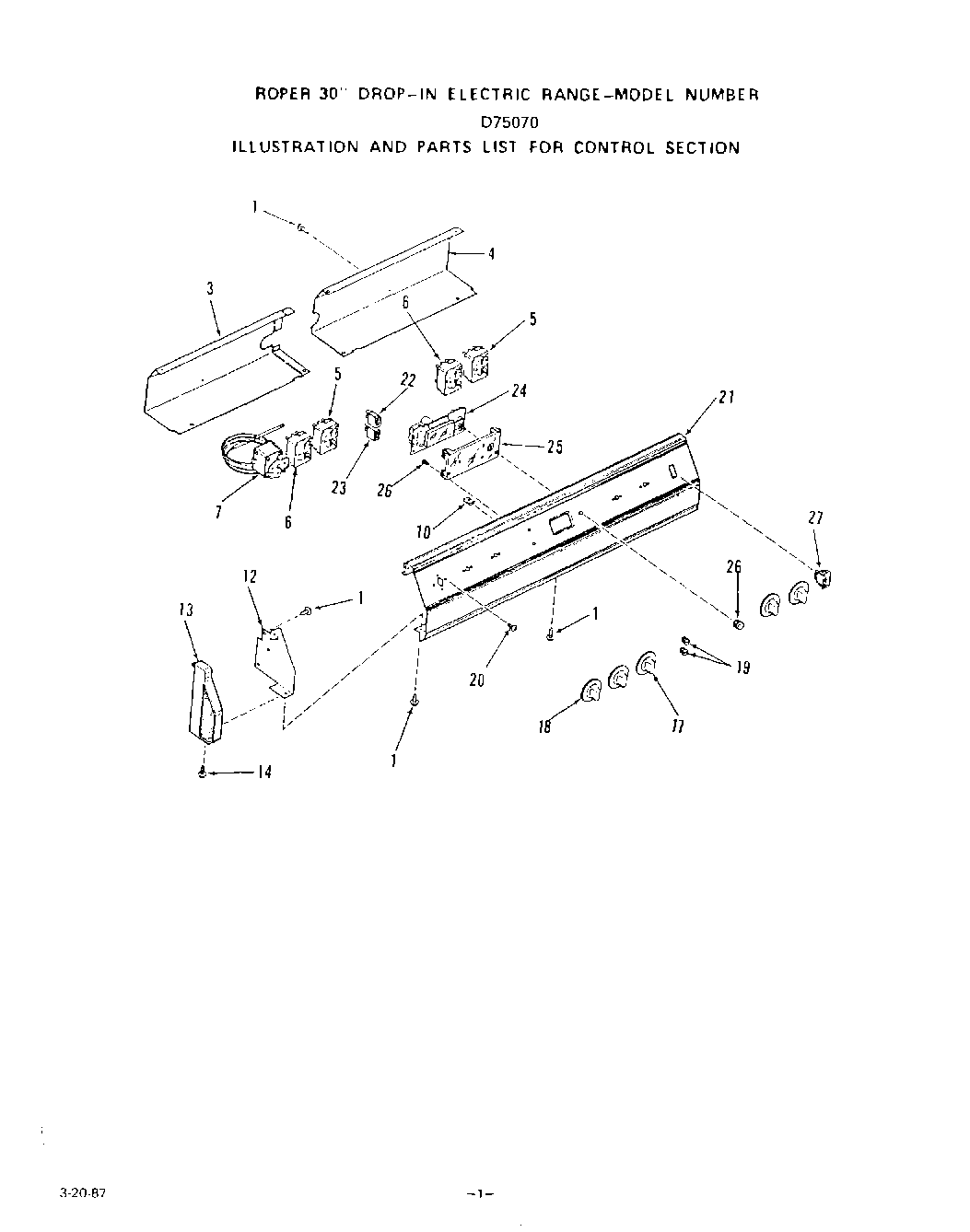

D7507W0 02 – CONTROL
Products
Position
Product
1
WP112432 Whirlpool Nut Assembly
3
Cover-Wire Control (Left)
4
Cover-Wire Control (Right)
5
Infinite Control (Right)
6
Infinite Control (Left)
7
Thermostat-Oven
10
Speed Nut 10 – 32
12
Bracket-Control Panel Mounting
12
Mounting Bracket – End Cap (Left)
12
Mounting Bracket – End Cap (Right)
13
Cap-End
13
Left
13
Right
14
Screw 10ABx1/2“
17
Knob-Infinite
18
Knob-Thermostat
19
Lens-Indicator Light
20
WPL 78565
21
Panel-Control
22
Light-Indicator (Surface)
23
Light-Indicator
24
Clock
25
Clock Lens
26
Knob-Clock
27
Switch-Oven Light
←
