D7507W0 04 – MAIN TOP
Written by
in

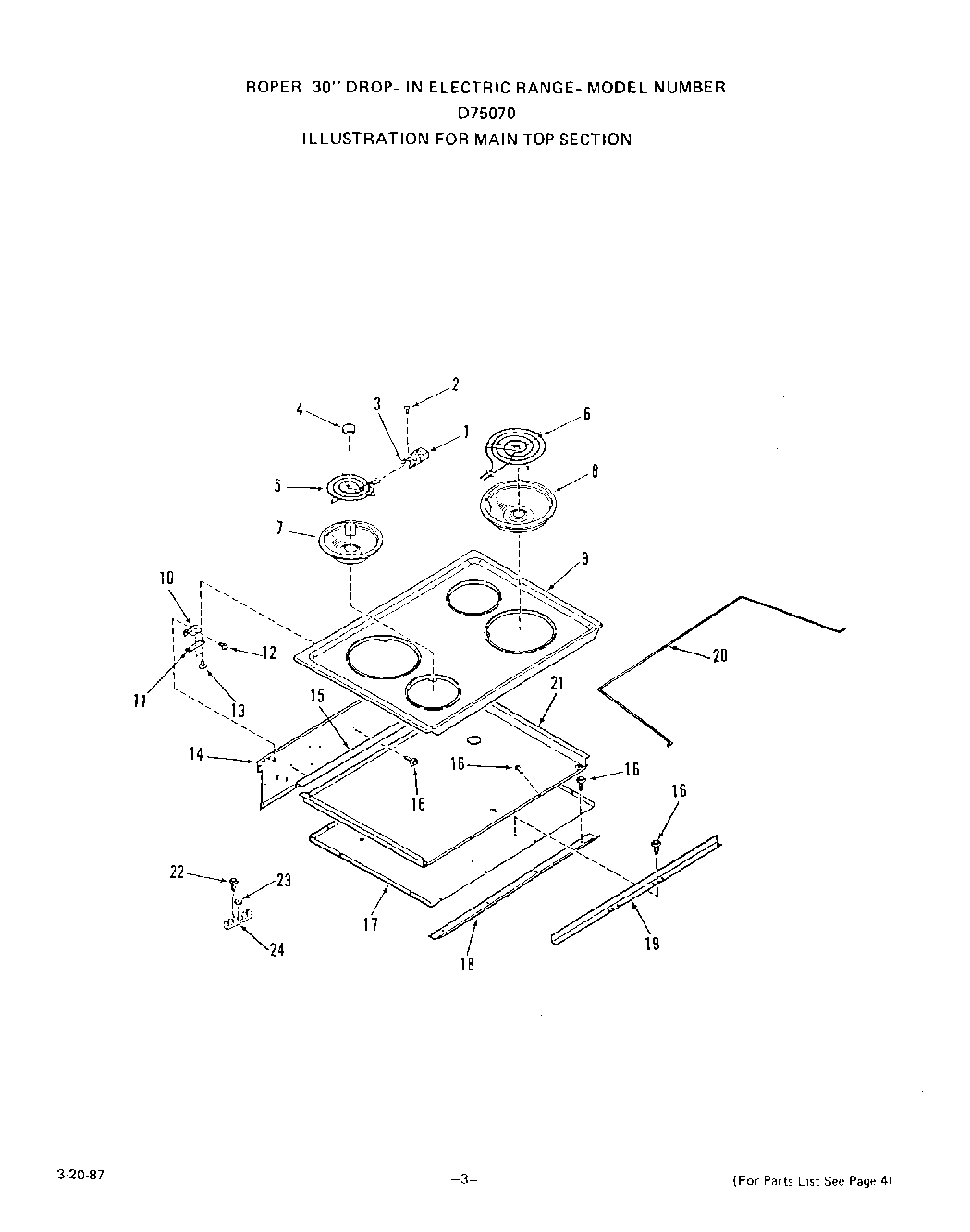

D7507W0 04 – MAIN TOP
Products
Position
Product
1
Term. Block w/Leads-All 2101 Models
2
Screw 7-32×5/16“(2 Req) All 2101 Models
3
Bracket-Term. Block (2 Req) All 2101 Mod.
4
Medallion (4 Required)
5
6“ Surface Unit (Lt. Front & Rt. Rear)
6
8“ Surface Unit (Rt. Front & Lt. Rear)
7
6“ Burner Bowl (1 Req) All 2101 Models
8
8“ Burner Bowl (1 Req) All 2101 Models
9
Chrome
9
White
9
Top-Main
9
Almond
10
Hinge (Lt or Rt)
11
Mounting Bracket – Hinge (Lt or Rt)
12
Screw 10-32×5/16“
13
Screw 6-32×3/16“
14
Cover-Upper Wire
15
Rear Wire Shield
16
Screw 10-16×7/16“
17
Bottom-Burner Box
18
Extension-Burner Box
19
Shield-Wire
20
Rod-Main Top Support
21
Top-Burner Box
22
Screw 10-32×1“
23
Hex Nut 10-32
24
Junction Block
←
