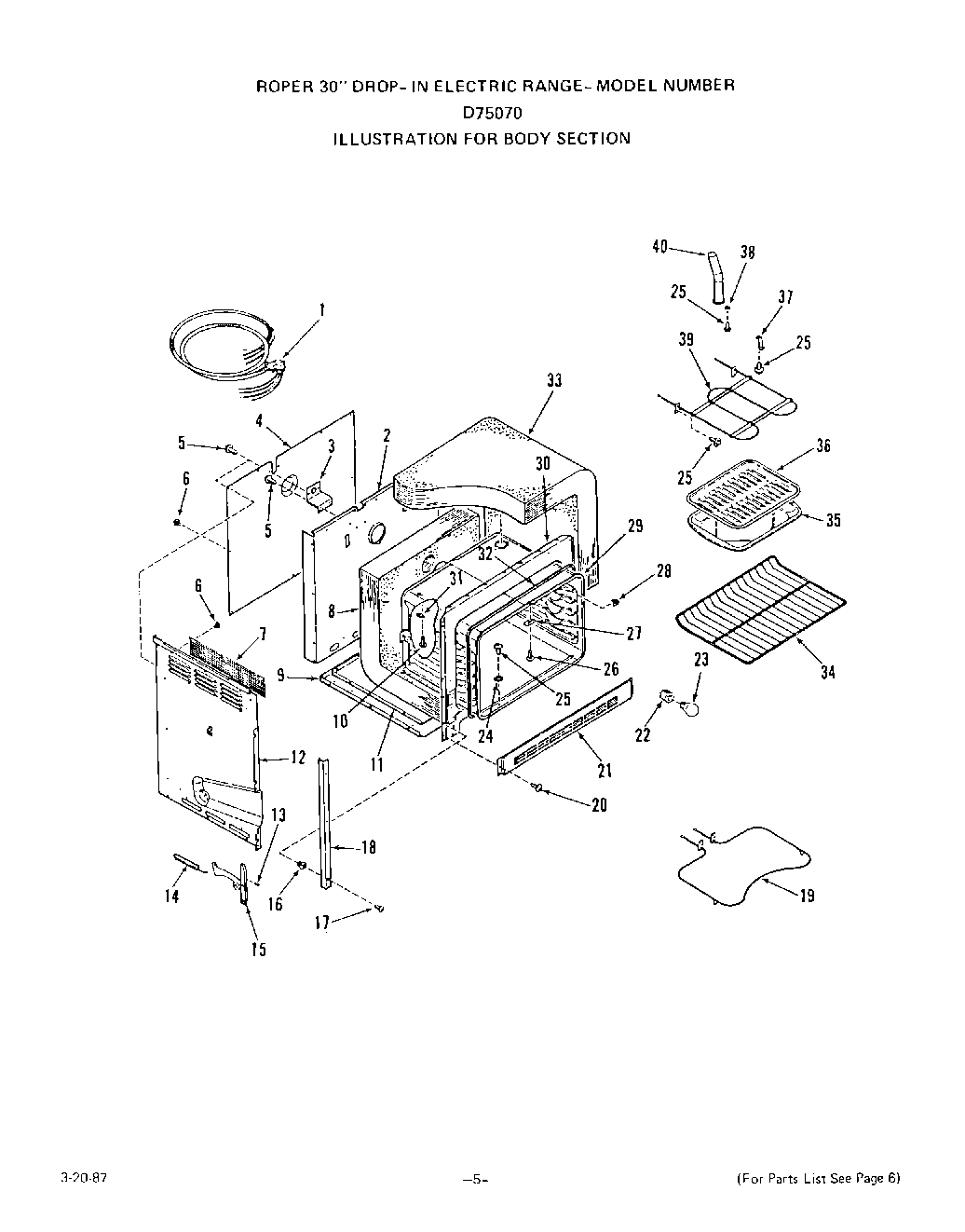

D7507W0 05 – BODY

D7507W0 05 – BODY

Written by

in

D7507W0 05 – BODY

Products

PositionProduct
1Harness-Conduit Wire
2Back-Main
3Bracket-Conduit Mounting
4Cover-Wire
5WP112432 Whirlpool Nut Assembly
6Clip
7Screen-Burner Box
8Insulation-Oven Back & Bottom (1 Piece)
9Bottom-Main
11Retainer-Insulation (Bottom)
12Left
12Retainer-Insulation (Sides)
12Right
13Screw
14Spring-Oven Door
15Right
15Hinge-Oven Door
15Left
16Spacer-Expansion
17Screw 8ABx3/4“
18Left
18Right
18Trim-Side
19Element-Bake
20Screw-10-32×1/2“
21Trim-Bottom
22Holder-Oven Lamp
23Oven Lamp Bulb
24Washer
25Screw 10 – 32 x 17/32“
26Screw 10-16×7/16“
27Cover
28Clip-Thermostat Bulb (2 Req)
29Oven Body
30Front Frame
31Cover Plate-Thermostat Bulb
32Seal-Oven Door
33Insulation-Oven Top & Sides (1 Piece)
34WPL 326068
35WPL 331592
36WPL 326297
37Support-Broiler Element
38Washer
39Broiler Element
40Tube-Vent
