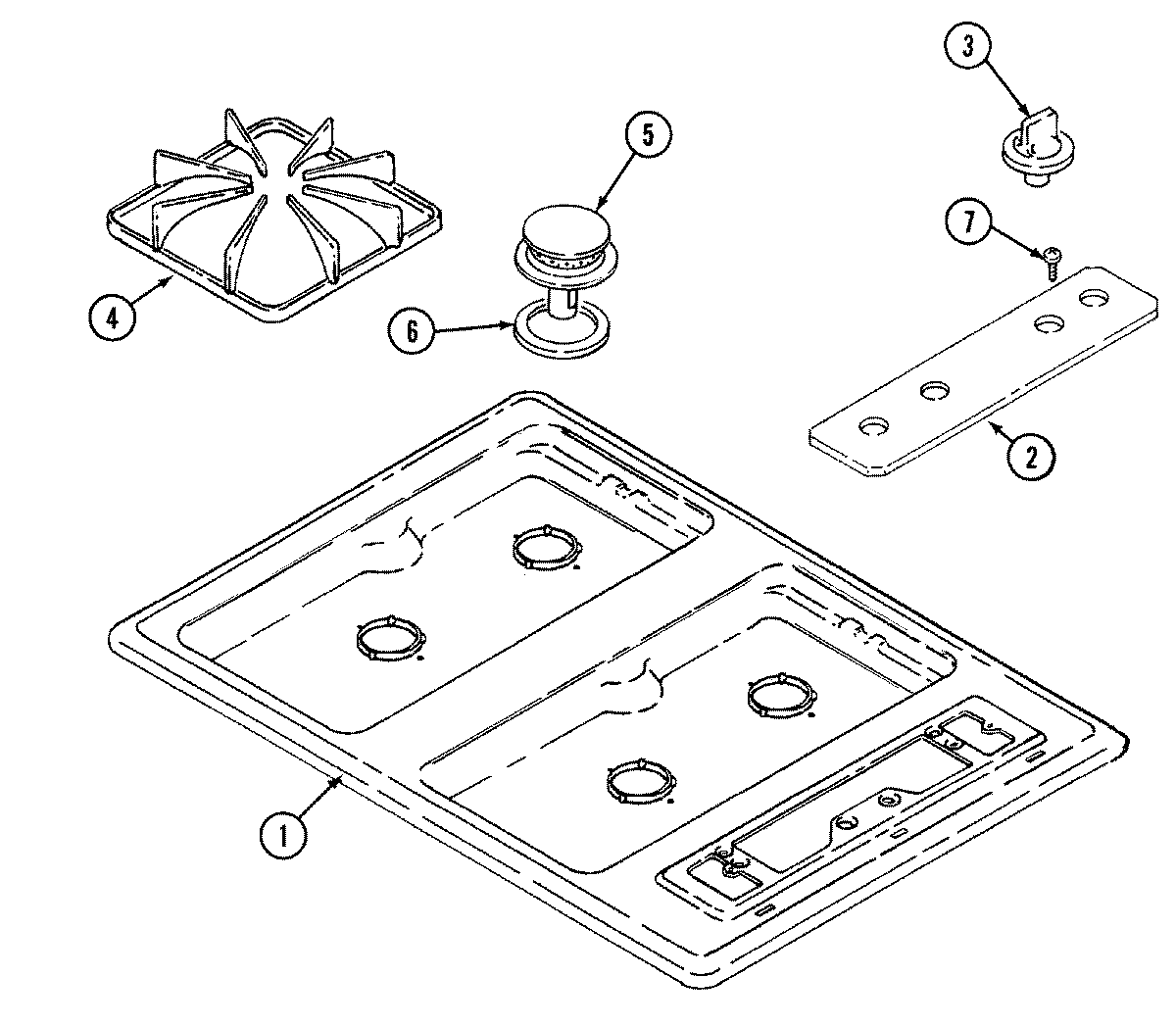

D8241RA-L 02 – TOP ASSEMBLY

Products

Position	Product
1	MAY 2001W083-84
1	MAY 74001467
2	MAY 7719P026-60
2	MAY 7720P146-60
3	MAY 7733P045-60
3	WP74001253 Whirlpool Top Knob
4	MAY 2003W023-00
4	MAY 74001653
4	WP7518P464-60 Whirlpool Burner Grate
5	MAY 3412D018-09
5	WP3412D024-09 Whirlpool Oven Burner Head
6	MAY 7201P050-60
6	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
7	MAY 7101P076-60
