D8241RW-L 01 – BODY
Written by
in

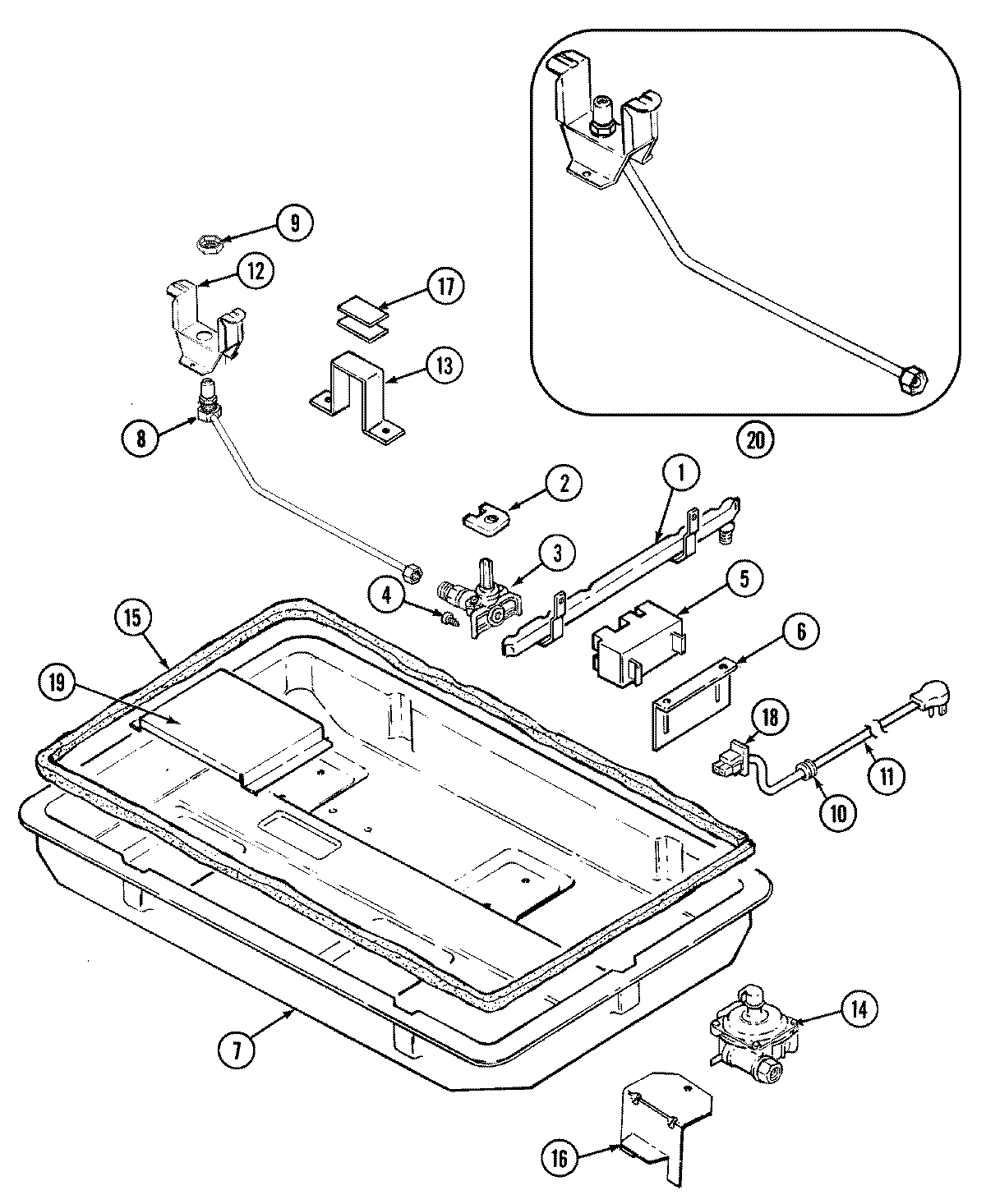

D8241RW-L 01 – BODY
Products
Position
Product
1
MAY 7208P019-60
1
MAY 7513P089-60
1
MAY 74001348
2
WP7403P367-60 Whirlpool Switch
2
WP7403P190-60 Whirlpool Switch
3
MAY 7502P253-60
3
MAY 7502P105-60
3
MAY 74001381
4
MAY 7101P043-60
5
MAY 7431P023-60
5
8215557 Whirlpool Gas Stove Range Oven Cooktop Spark Module
5
MAY 74003288
6
MAY 7101P059-60
6
MAY 3801F304-45
6
MAY 3801F357-45
7
MAY 74001208
7
MAY 4011F202-80
7
MAY 74001368
8
MAY 7507P146-60
8
NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
8
MAY 7507P147-60
8
MAY 7507P148-60
8
MAY 7507P149-60
9
MAY 7103P119-60
10
BUSHING, SNAP
10
SCREW, GROUND (GRN)
11
MAY 7402P014-60
12
MAY 7118P018-60
12
MAY 3807F441-51
13
MAY 3801F298-45
13
SCREW (10ABX1.0-ZN)
14
MAY 74001361
14
MAY 7510P001-60
15
MAY 8270P073-60
16
MAY 3801F192-45
17
MAY 12400008
18
MAY 7401P018-60
18
MAY 7401P017-60
19
MAY 5111A610-60
19
MAY 4005F427-51
19
MAY 5111A261-60
20
MAY 74001375
20
MAY 74001374
20
MAY 74001373
20
MAY 74001200
20
MAY 74001199
20
MAY 74001198
20
MAY 74001197
20
MAY 74001376
←
