D8320TA-L 03 – TOP ASSEMBLY – Aparts

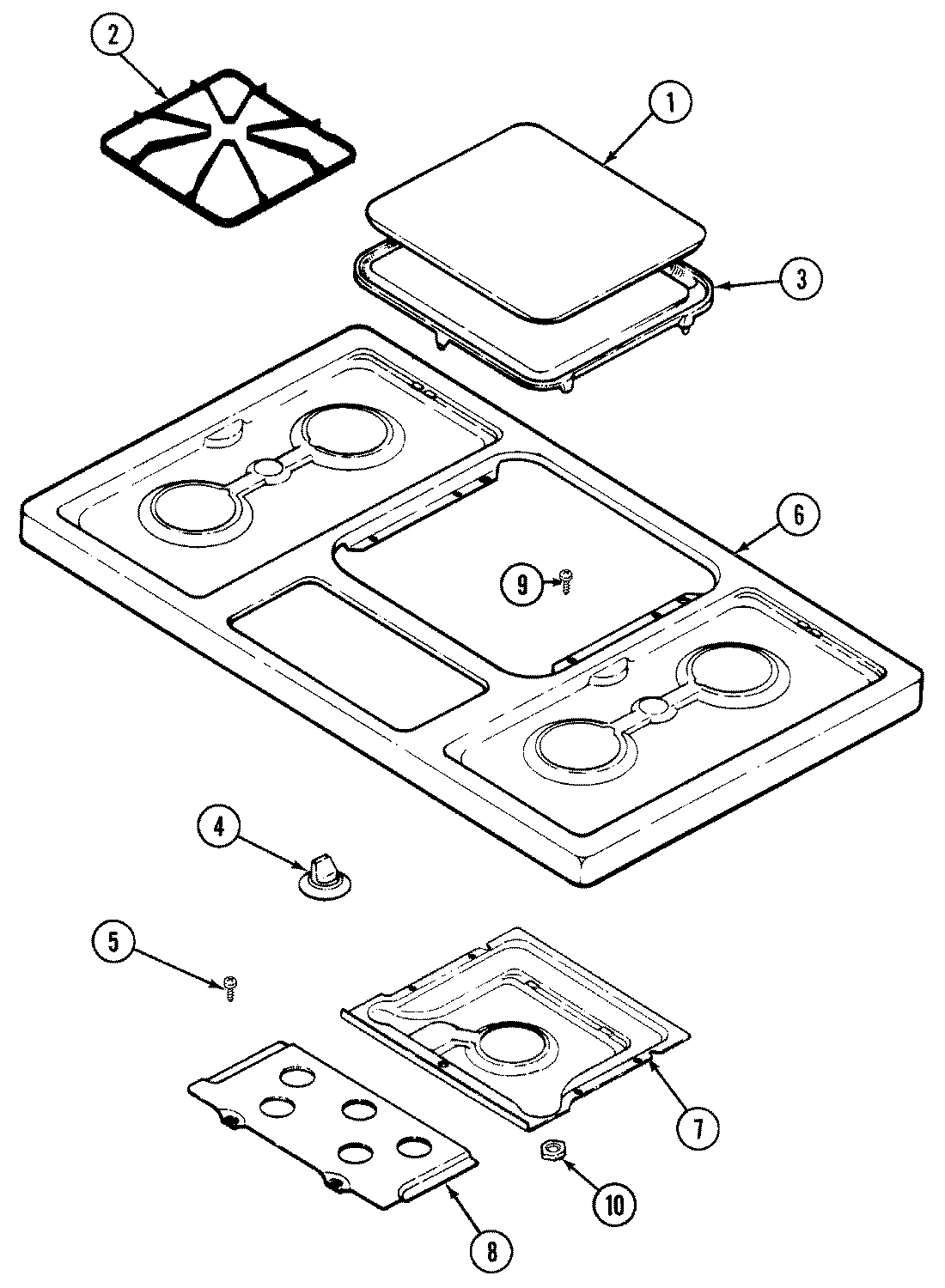

D8320TA-L 03 – TOP ASSEMBLY

Products

Position	Product
NI	SCREW (10ABX1.0-ZN)
NI	MAY 74001205
1	MAY 2005F005-30
2	MAY 2003W026-00
3	MAY 7508P006-60
4	MAY 7733P102-60
5	MAY 7118P004-60
6	MAY 2001F041-84
7	MAY 2006F003-50
8	MAY 7719P026-60
8	MAY 7720P170-60
9	MAY 7101P114-60
10	WPW10131078 Whirlpool Nut Assembly
