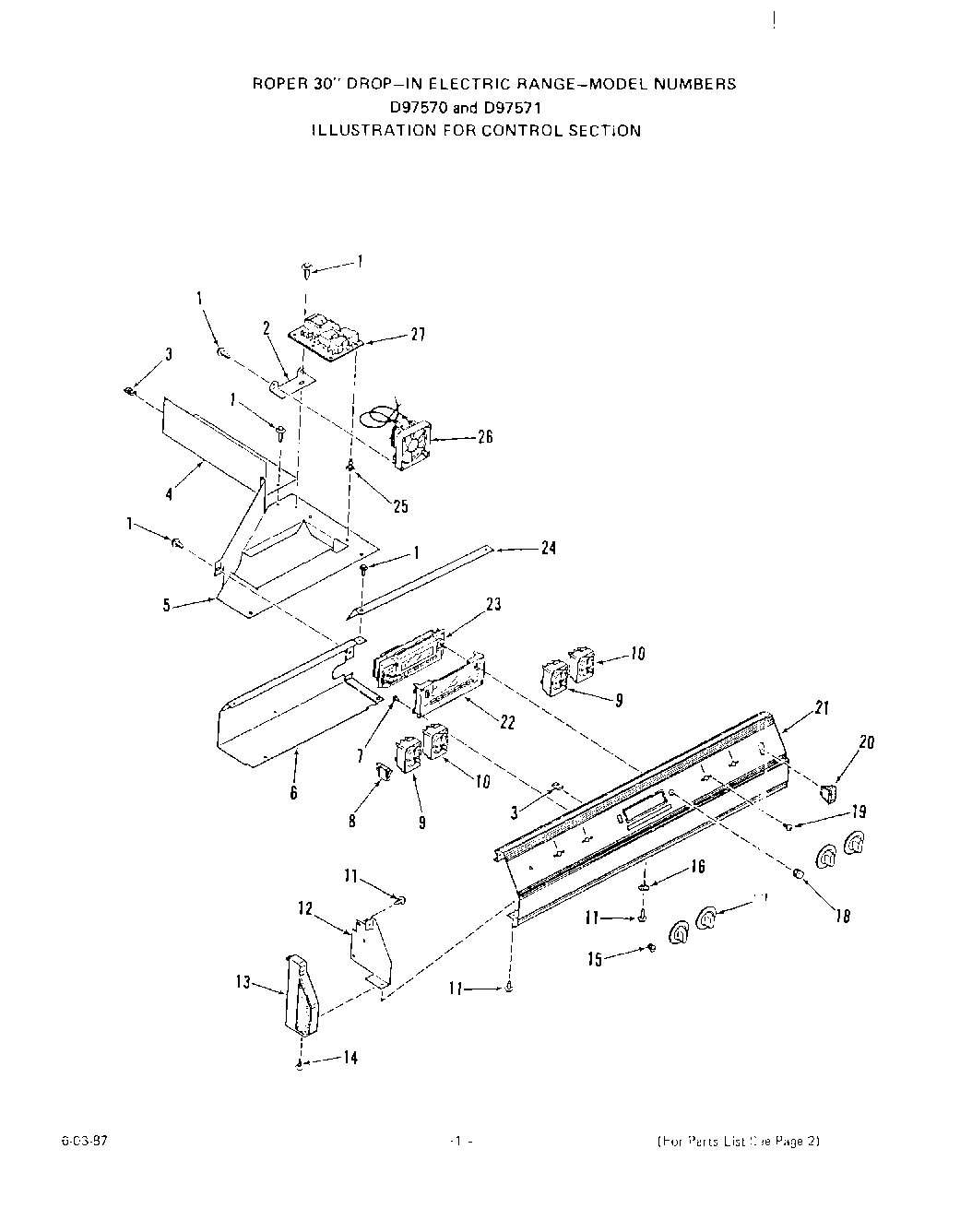

D9757^1 02 – MAIN TOP , LIT/OPTIONAL 8“ CANNING

Products

Position	Product
1	Screw 10-16×7/16“
2	Fan Bracket
3	Speed Nut 10 – 32
4	Fan Duct
5	Lock Cover
6	Wire Cover
7	Screw 6-32×5/16“
8	Light-Indicator (Surface)
9	Left Front & Right Rear
10	Right Front & Left Rear
11	WP112432 Whirlpool Nut Assembly
12	Control Panel Mounting Bracket
13	End Cap
13	Right
13	Mounting Bracket – End Cap (Right)
13	Mounting Bracket – End Cap (Left)
13	Left
14	Screw 10ABx1/2“
15	Lens-Indicator Light
16	WPL 21067
17	Knob-Infinite
18	Knob-Clock
19	WPL 78565
20	Switch-Oven Light
21	Control Panel
22	Clock Lens Asm
22	D97570
22	Clock Lens Asm.
23	Clock/Oven Control
23	D97570
23	D97571
24	Control Cover
25	Spacer
26	Fan
27	D97571
27	D97570
27	Relay Circuit Board
