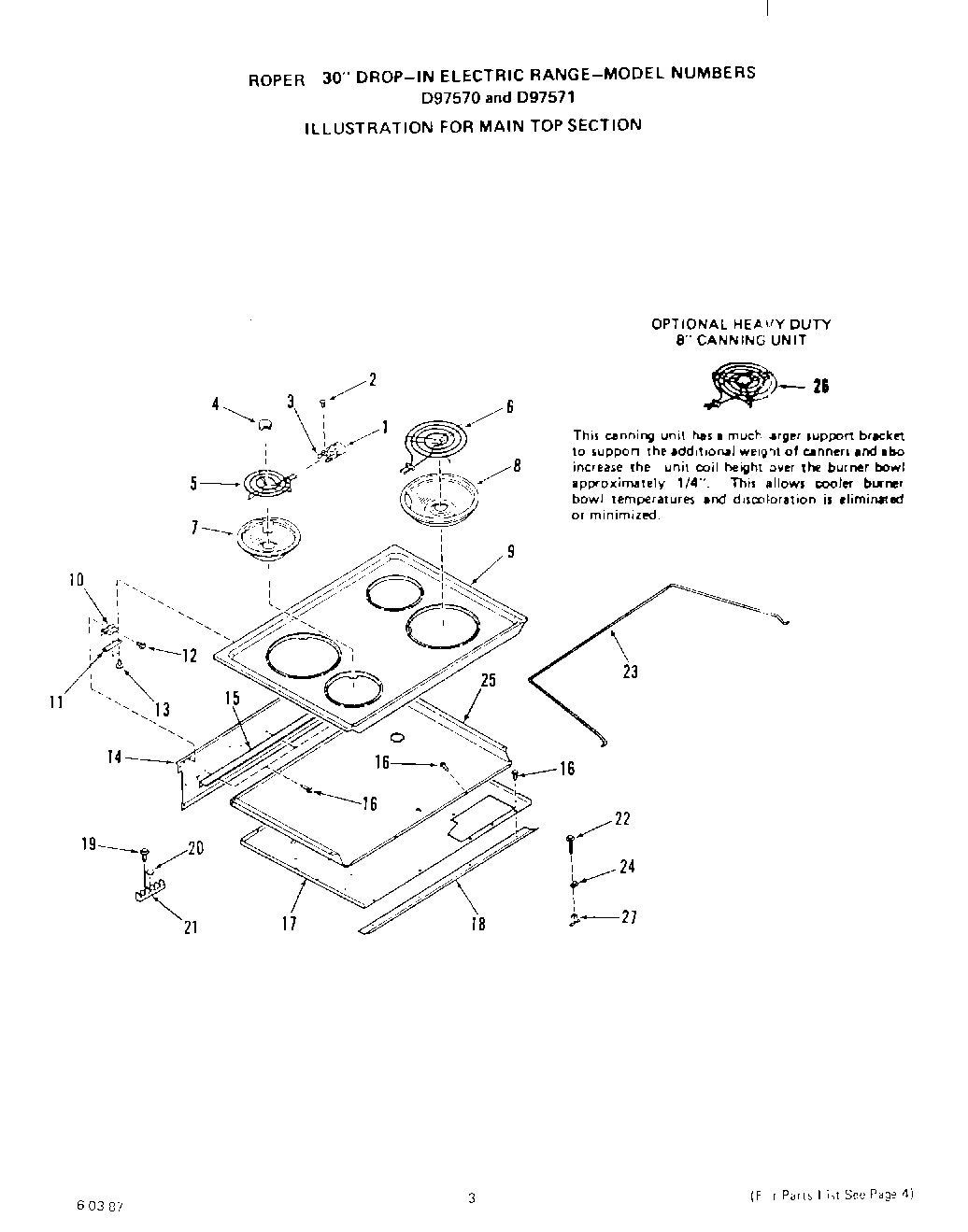

D9757^1 03 – BODY

Products

Position	Product
1	Term. Block w/Leads-All 2101 Models
2	Screw 7-32×5/16“(2 Req) All 2101 Models
3	Bracket-Term. Block (2 Req) All 2101 Mod.
4	Medallion (4 Required)
5	6“ Surface Element (1 Req) All 2101 Models
6	8“ Surface Element (1 Req) All 2101 Mod.
7	6“ Burner Bowl (1 Req) All 2101 Models
8	8“ Burner Bowl (1 Req) All 2101 Models
9	White
9	Main Top (Chrome)
9	Main Top
9	Almond
10	Hinge (Lt or Rt)
11	Mounting Bracket – Hinge (Lt or Rt)
12	Screw 10-32×5/16“
13	Screw 6-32×1/4“
14	Cover-Upper Wire
15	Rear Wire Shield
16	Screw 10-16×7/16“
17	Burner Box Bottom
18	Extension-Burner Box
19	Screw 10-32×1“
20	Hex Nut 10-32
21	Junction Block
22	Screw 10-32 x 2“
23	Rod-Main Top Support
24	Clip
25	Top-Burner Box
26	Optional Heavy Duty 8“ Canning Unit (240 Volt)
26	WPY04100165 Whirlpool Surface Element
26	Optional Heavy Duty 8“ Canning Element
27	Spacer
