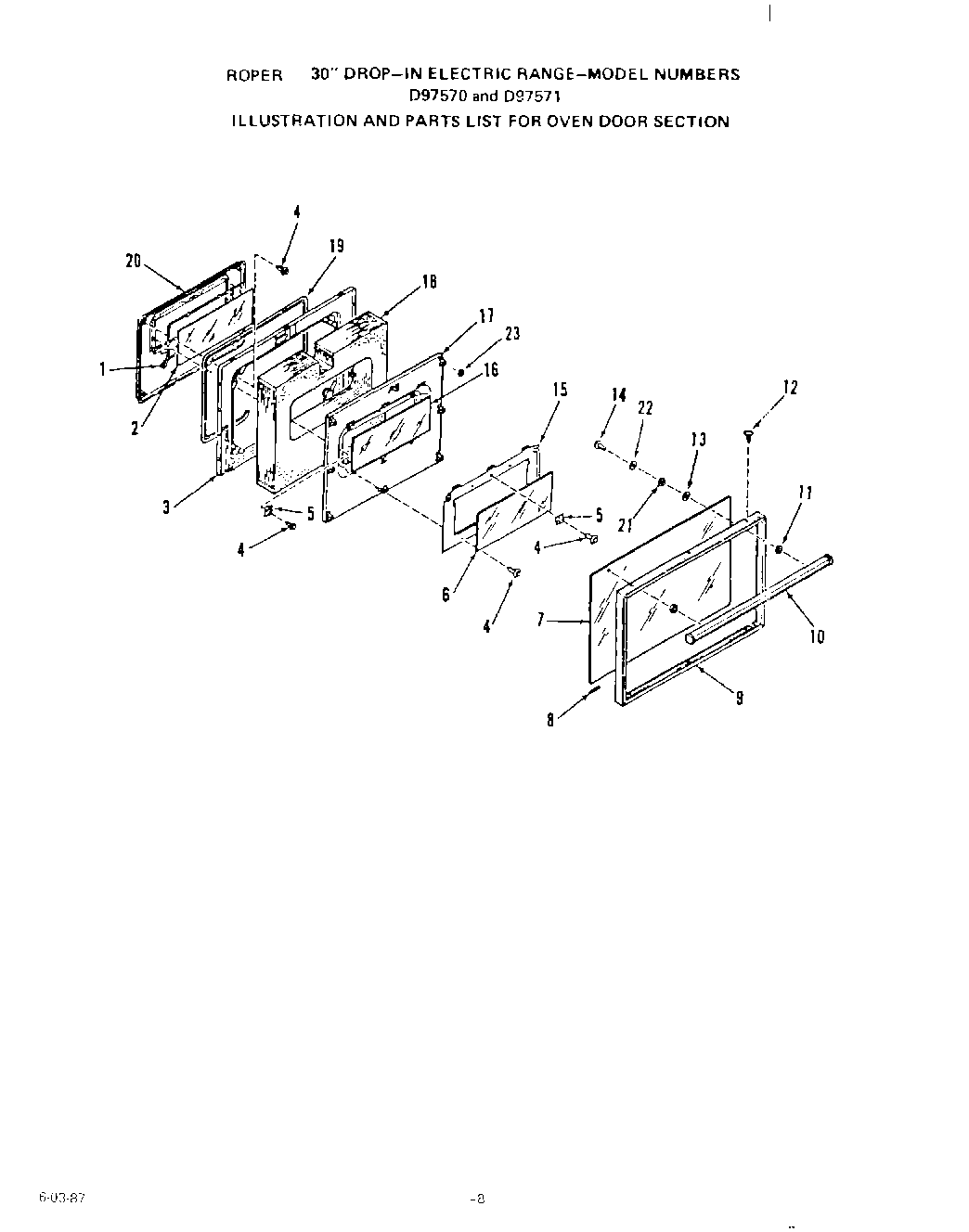

D9757^1 06 – WIRE HARNESSES AND COMPONENTS

Products

Position	Product
1	Seal-Inner Glass
2	Inner Door Glass
3	Lining-Oven Door
4	Screw 10-16×7/16“
5	Retainer-Door Glass
6	Intermediate Glass-Oven Door
7	Outer Glass
8	Cushion-Door Glass
9	Oven Door Frame
10	Handle
11	Spacer
12	Screw
13	Washer
14	Screw 10-32×3/4“
15	Mounting Plate-Glass
16	Center Door Glass
17	Retainer-Oven Door Insulation
18	Insulation
19	Gasket-Oven Door
20	Plug-Oven Door Lining
21	Spacer-Glass
22	Washer
23	Washer
