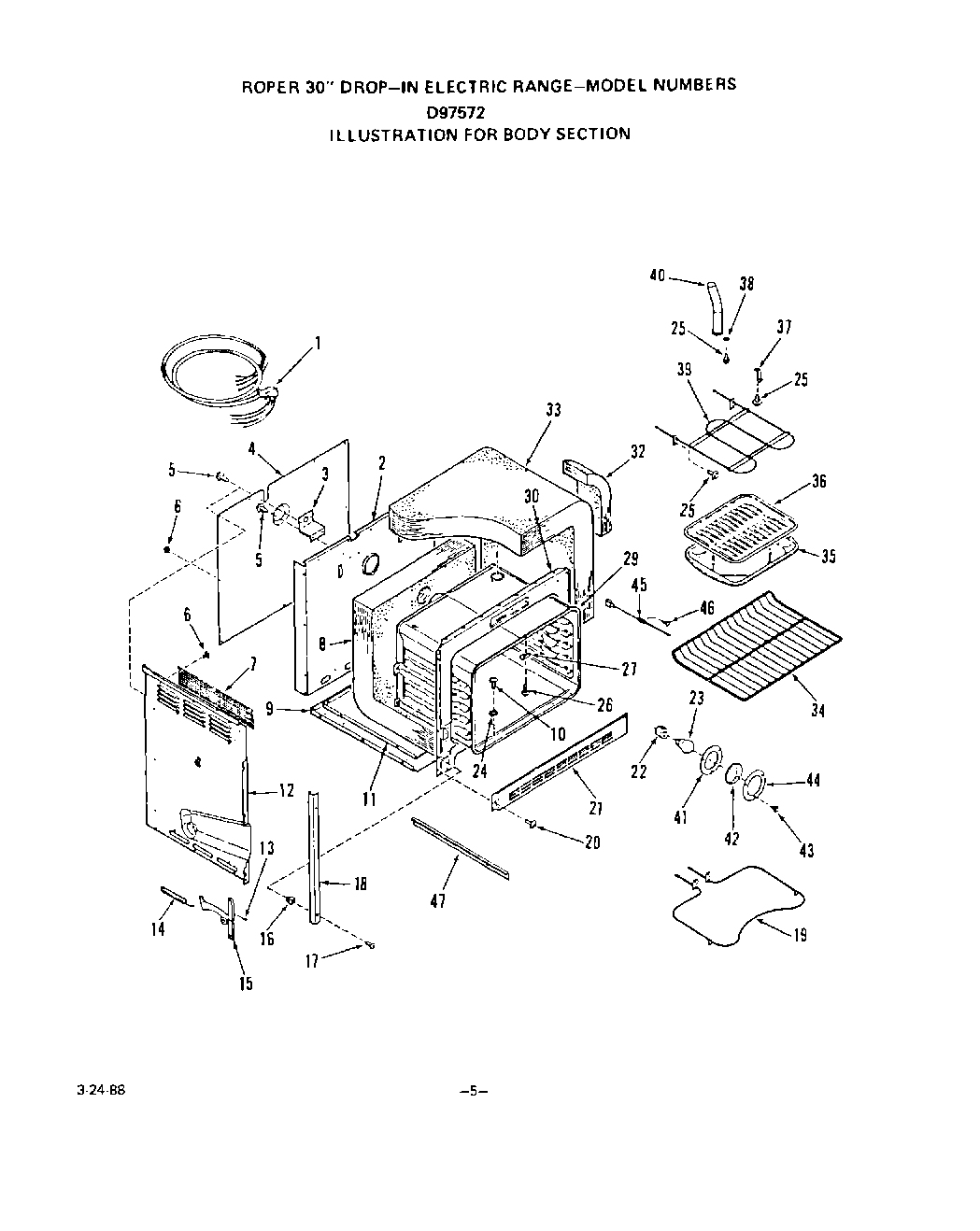

D9757^2 04 – BODY

Products

Position	Product
1	Harness-Conduit Wire
2	Back-Main
3	Bracket-Conduit Mounting
4	Cover-Wire
5	WP112432 Whirlpool Nut Assembly
6	Clip
7	Screen-Burner Box
8	Insulation-Oven Back & Bottom
9	Bottom-Main
11	Retainer-Insulation (Bottom)
12	Retainer Insulation (Sides) (Left)
12	Right
13	Screw
14	Spring-Oven Door
15	Left
15	Right
16	Spacer-Expansion
17	Screw 8ABx3/4“
18	Left
18	Right
19	Element-Bake (240 Volt)
19	Element-Bake (208 Volt (Optional))
20	Screw-10-32×1/2“
21	Trim-Bottom
22	Holder-Oven Lamp
23	Oven Lamp
24	WPL 21067
25	Screw 10ABx1/2“
26	Screw 10-16×7/16“
27	Cover
28	Clip-Thermostat Bulb (2 Req)
29	Oven Body
30	Front Frame
32	Insulation (Rt. or Lt.)
33	Insulation-Oven Top & Sides (1 Piece)
34	Oven Rack (2 Req)
35	WPL 331592
36	WPL 326297
37	Support-Broiler Element
38	Washer
39	Broiler Element
39	Element-Broil (208 Volt (Optional))
40	Tube-Vent
41	Gasket-Lens
42	Lens-Oven Light
43	Screw 10ABx1/2“
44	Retainer-Oven Light Lens
45	Sensor
46	Screw 6Ax3/8“
47	Side Trim – Burner Box Bottom (Lt or Rt)
