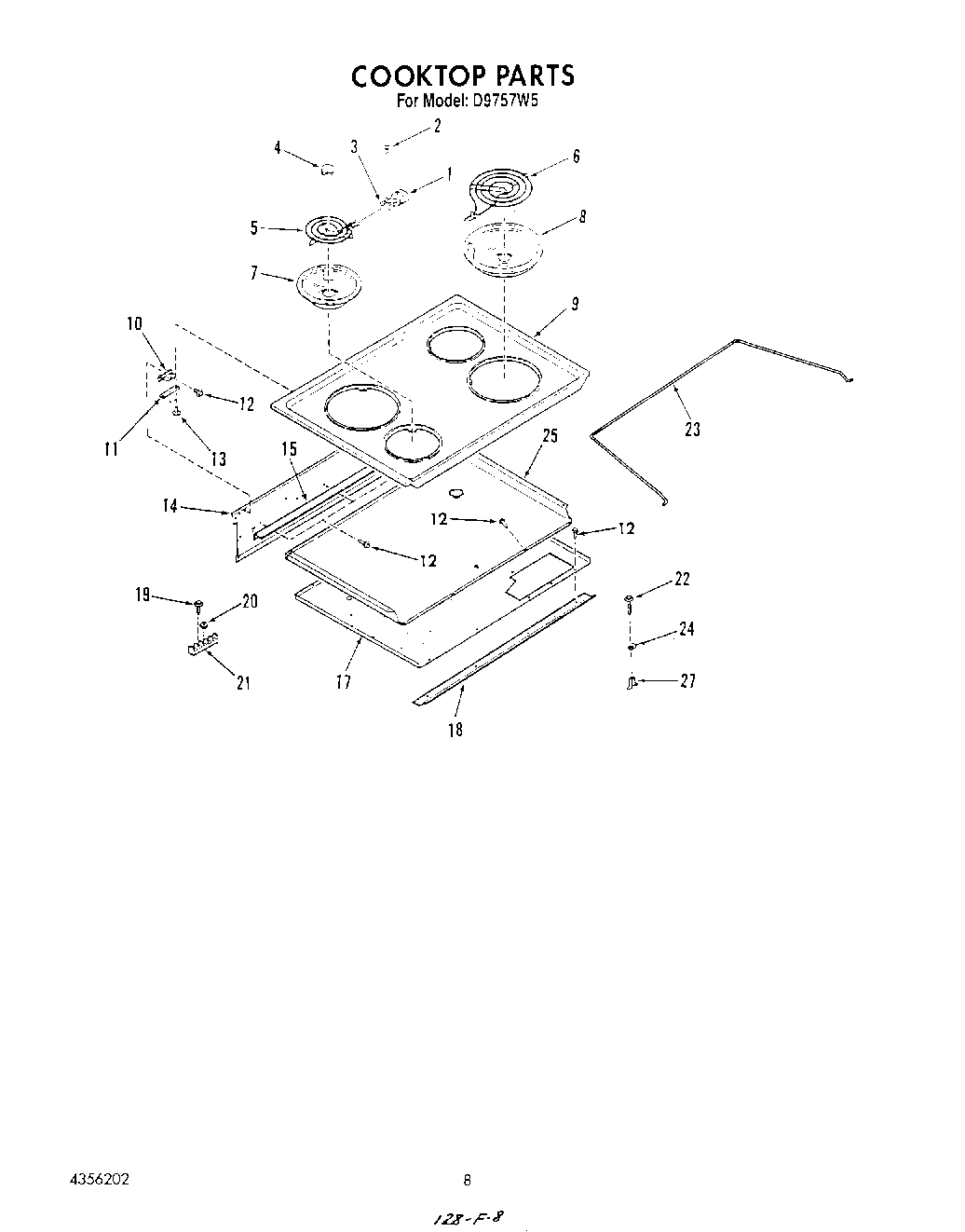

D9757^5 06 – COOKTOP

Products

Position	Product
1	BURNER RECEPTACLE KIT
2	Screw
3	WP4332752 Whirlpool Clip
4	Medallion
5	WPY04100165 Whirlpool Surface Element
6	WP3177565 Whirlpool Surface Element
7	WPW10196406 Whirlpool 6" Chrome Drip Bowl
8	DRIP BOWL 8" W/HOLE CHROME
9	Cooktop (Almond)
9	Cooktop (Chrome)
9	Cooktop (White)
10	Hinge (Lt or Rt)
11	Bracket, Mounting-Hinge (Lt or Rt)
12	SCREW
13	Screw No.6-32×3/16“
14	Cover, Wire
15	Shield, Rear Wire
17	Bottom, Burner Box
18	Extension, Burner Box
19	Screw, No.10-32×1
20	WP776338 Whirlpool Compactor Nut
21	WP8203546 Whirlpool Terminal Block
22	Screw, No.10-2 x 1/2
23	Support Rod, Main Top
24	488946 Whirlpool Air Conditioner Clamp
25	208 Volt (Opt)
25	240 Volt
25	Top, Burner Box
27	Spacer
