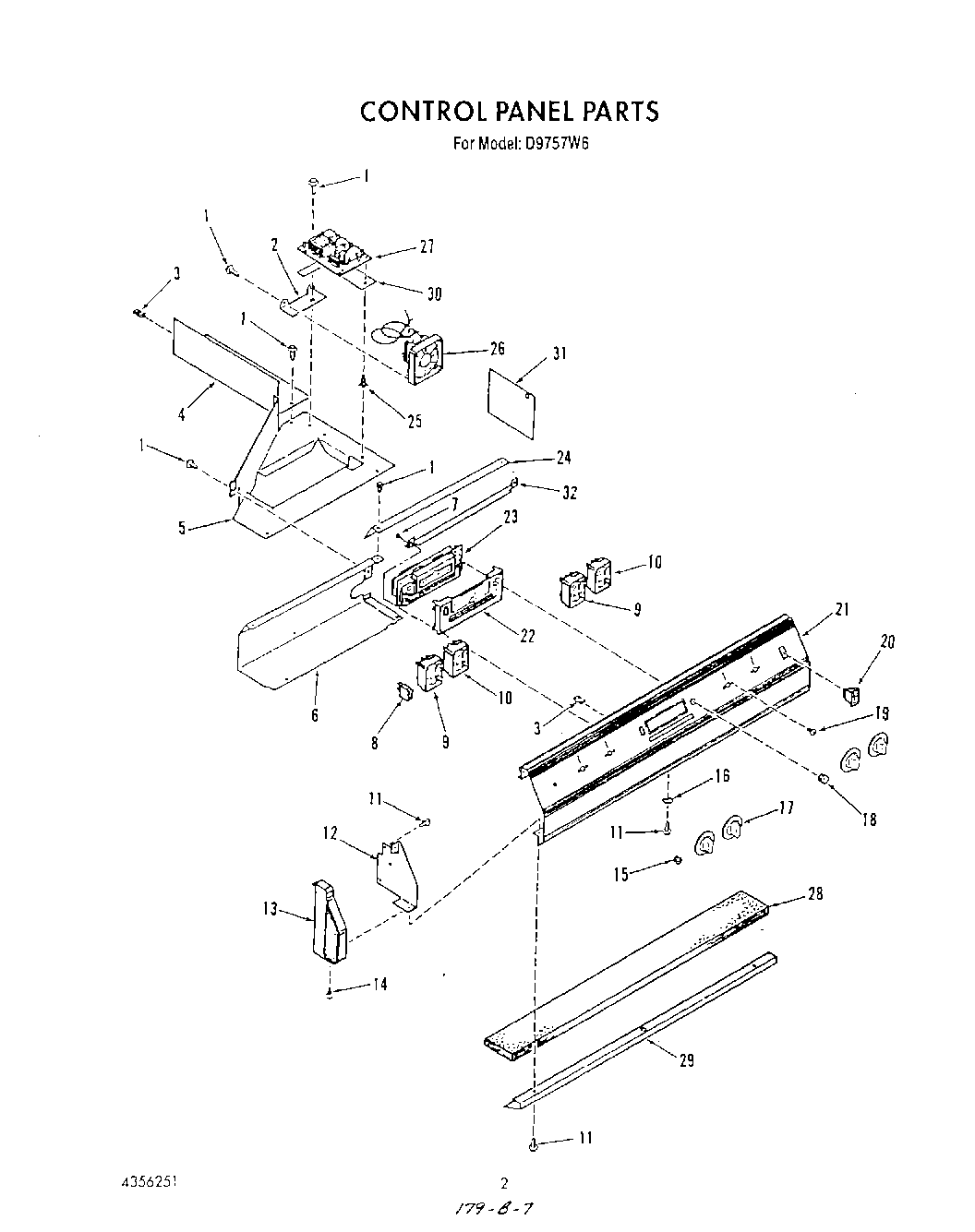

D9757^6 02 – CONTROL PANEL

Products

Position	Product
1	W10850756 Whirlpool Screw
2	Bracket, Fan
3	Nut, Speed No.10-32
4	Fan Duct
5	Lock Cover
6	Wire Cover, Left
7	Screw
8	Indicator Light (Oven Unit)
9	W10900107 Whirlpool Oven Surface Element Switch
12	Bracket-End Cap (Right)
12	Bracket-End Cap (Left)
13	End Cap (Left)
13	End Cap (Right)
14	WP308685 Whirlpool Microwave Screw
15	WP9750343 Whirlpool Light Lens
16	Washer
17	Knob, Infinite Control (4)
18	Knob, Clock
19	Screw
20	WP4314961 Whirlpool Lite Switch
21	Control Panel
22	Clock Lens Asm.
23	Clock/Oven Control
24	Cover, Control
25	Spacer
26	Fan
27	Relay, Circuit Board
28	Insulation
29	Moisture Shield
30	Insulator, Relay
31	Shield, Louver
32	Brace, Clock Stiffener
