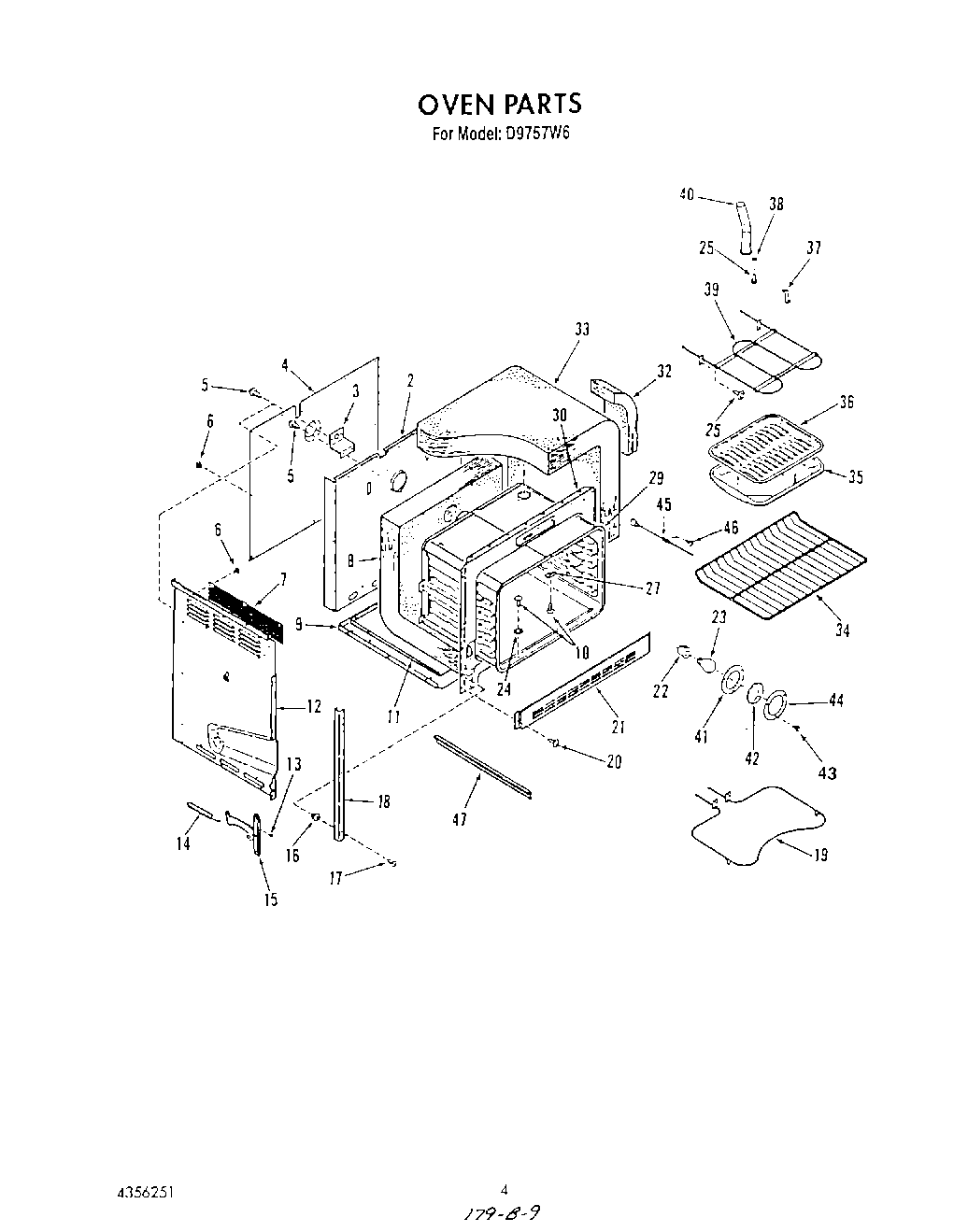

D9757^6 03 – OVEN

Products

Position	Product
2	Back, Main
3	Mounting Bracket Conduit
4	Wire Cover
5	W10850756 Whirlpool Screw
6	Clip
7	Screen, Burner Box
8	Insulation, Back And Bottom
9	Bottom, Main
10	WP308685 Whirlpool Microwave Screw
11	Retainer, Bottom Insulation
12	Retainer, Insulation (Left Side)
12	Retainer, Insulation (Right Side)
13	Screw
14	Spring, Oven Door
15	Hinge, Oven Door (Left)
15	Hinge, Oven Door (Right)
16	Spacer, Expansion
17	W11693756 Whirlpool Screw Assembly
18	Side Trim (Left)
18	Side Trim (Right)
19	Bake Element (240 Volt)
19	Bake Element (208 Volt (Opt))
21	Trim, Bottom
22	W10856866 Whirlpool Light Socket
23	RANGE ONLY 40W 120V APPL BULB
24	Washer
25	Screw, No.10-32 x 17/32
27	Cover
29	Oven Cavity
30	Frame, Front
32	Insulation
33	Insulation, Wrap
34	Rack, Oven
36	4396923 Whirlpool Broil Pan Set Gray Porcelain
37	Support, Broil Element
38	Washer
39	Broil Element (208 Volt (Opt))
39	Broil Element (240 Volt)
40	Vent Tube
41	Gasket, Lens
42	Lens, Oven Light
44	Retainer, Lens
45	Sensor
46	Screw
47	Trim-Bottom Burner Box (Lt or Rt)
