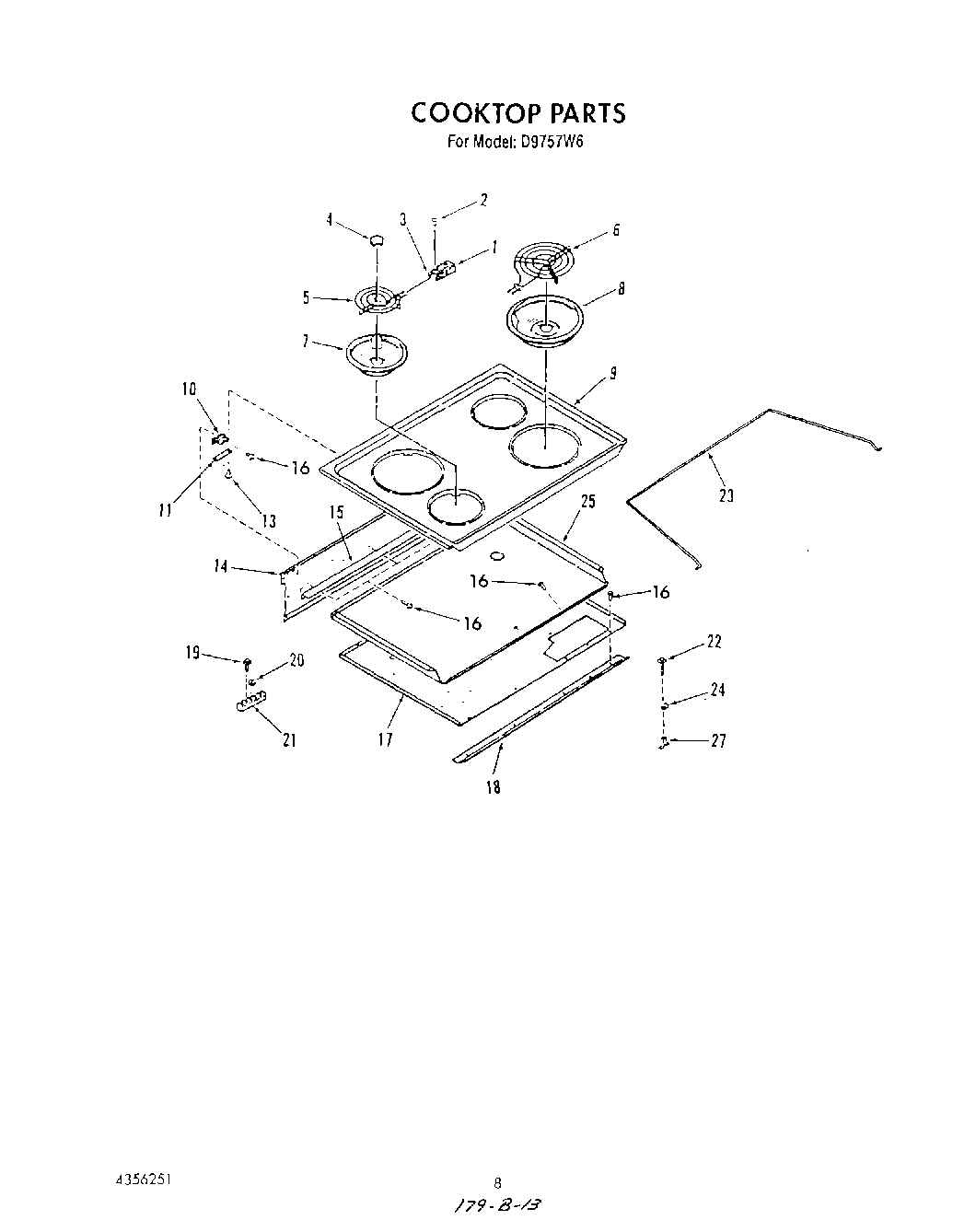

| 1 | BURNER RECEPTACLE KIT |
| 2 | Screw |
| 3 | WP4332752 Whirlpool Clip |
| 4 | Medallion |
| 5 | WPY04100165 Whirlpool Surface Element |
| 6 | WP3177565 Whirlpool Surface Element |
| 7 | WPW10196406 Whirlpool 6" Chrome Drip Bowl |
| 8 | DRIP BOWL 8" W/HOLE CHROME |
| 9 | Cooktop (Chrome) |
| 9 | Cooktop (Almond) |
| 9 | Cooktop (White) |
| 10 | Hinge (Lt or Rt) |
| 11 | Bracket, Mounting-Hinge (Lt or Rt) |
| 13 | Screw No.6-32x3/16`` |
| 14 | Cover, Wire |
| 15 | Shield, Rear Wire |
| 16 | W10850756 Whirlpool Screw |
| 17 | Bottom, Burner Box |
| 18 | Extension, Burner Box |
| 19 | Screw, No.10-32x1 |
| 20 | WP776338 Whirlpool Compactor Nut |
| 21 | WP8203546 Whirlpool Terminal Block |
| 22 | Screw, No.10-2 x 1/2 |
| 23 | Support Rod, Main Top |
| 24 | Clamp |
| 25 | Top, Burner Box |
| 27 | 240 Volt |
| 27 | 208 Volt (Opt) |
| 27 | Spacer |
