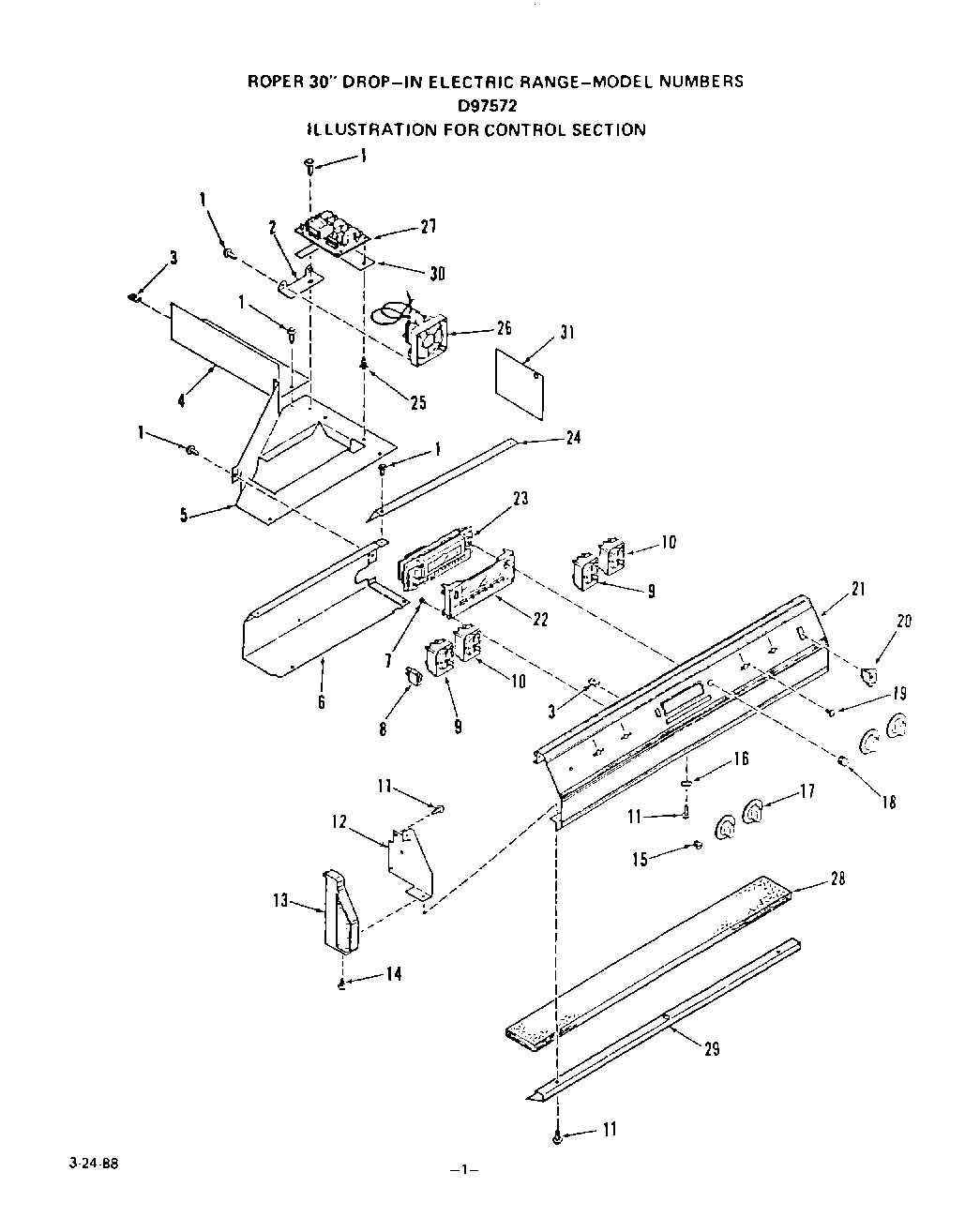

D9757W2 02 – CONTROL, LITERATURE

Products

Position	Product
1	Screw 10-16x7/16``
2	Fan Bracket
3	Speed Nut 10 - 32
4	Fan Duct
5	Lock Cover
6	Wire Cover
7	Screw 6-32x5/16``
8	Light-Indicator (Surface)
9	Left Front & Right Rear
10	Right Front & Left Rear
11	WP112432 Whirlpool Nut Assembly
12	Mounting Bracket - End Cap (Left)
13	Left
13	Mounting Bracket - End Cap (Right)
14	Screw 10ABx1/2``
15	Lens-Indicator Light
16	WPL 21067
17	Knob-Infinite
18	Clock Knob
19	WPL 78565
20	Switch-Oven Light
21	Control Panel
22	Clock Lens Asm
23	Clock/Oven Control
24	Control Cover
25	Spacer
26	Fan
27	Relay Circuit Board
28	Insulation
29	Control Panel Shield
30	Relay Insulator
31	Installation Guide
31	Use & Care Manual
31	Louver Shield
31	Repair Parts List
