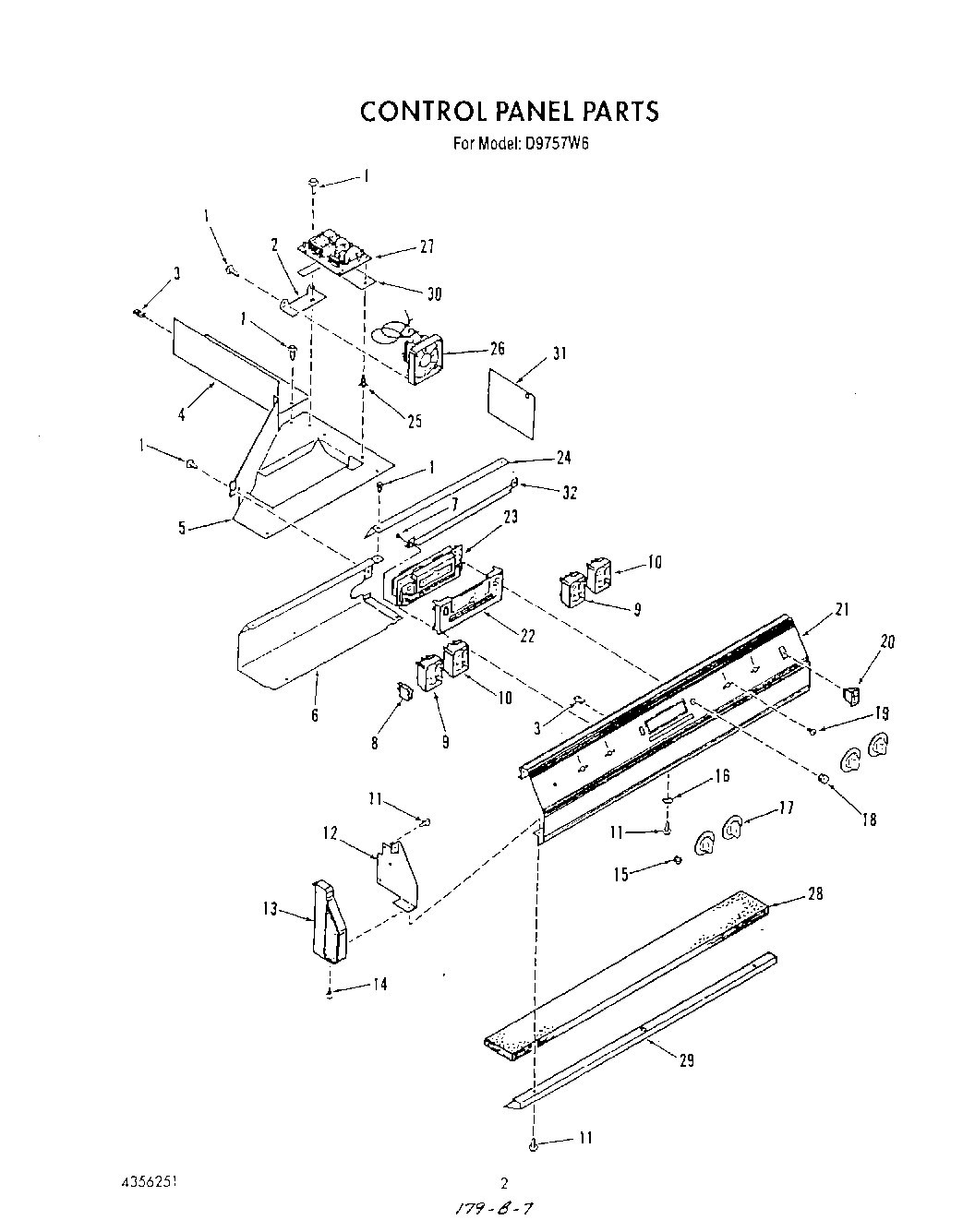

D9757W6 02 – CONTROL PANELadmin2025-04-26T10:54:19+00:00D9757W6 02 – CONTROL PANEL
Products
| Position | Product |
|---|
| 1 | W10850756 Whirlpool Screw |
| 2 | Bracket, Fan |
| 3 | Nut, Speed No.10-32 |
| 4 | Fan Duct |
| 5 | Lock Cover |
| 6 | Wire Cover, Left |
| 7 | Screw |
| 8 | Indicator Light (Oven Unit) |
| 9 | W10900107 Whirlpool Oven Surface Element Switch |
| 12 | Bracket-End Cap (Right) |
| 12 | Bracket-End Cap (Left) |
| 13 | End Cap (Left) |
| 13 | End Cap (Right) |
| 14 | WP308685 Whirlpool Microwave Screw |
| 15 | WP9750343 Whirlpool Light Lens |
| 16 | Washer |
| 17 | Knob, Infinite Control (4) |
| 18 | Knob, Clock |
| 19 | Screw |
| 20 | WP4314961 Whirlpool Lite Switch |
| 21 | Control Panel |
| 22 | Clock Lens Asm. |
| 23 | Clock/Oven Control |
| 24 | Cover, Control |
| 25 | Spacer |
| 26 | Fan |
| 27 | Relay, Circuit Board |
| 28 | Insulation |
| 29 | Moisture Shield |
| 30 | Insulator, Relay |
| 31 | Shield, Louver |
| 32 | Brace, Clock Stiffener |
