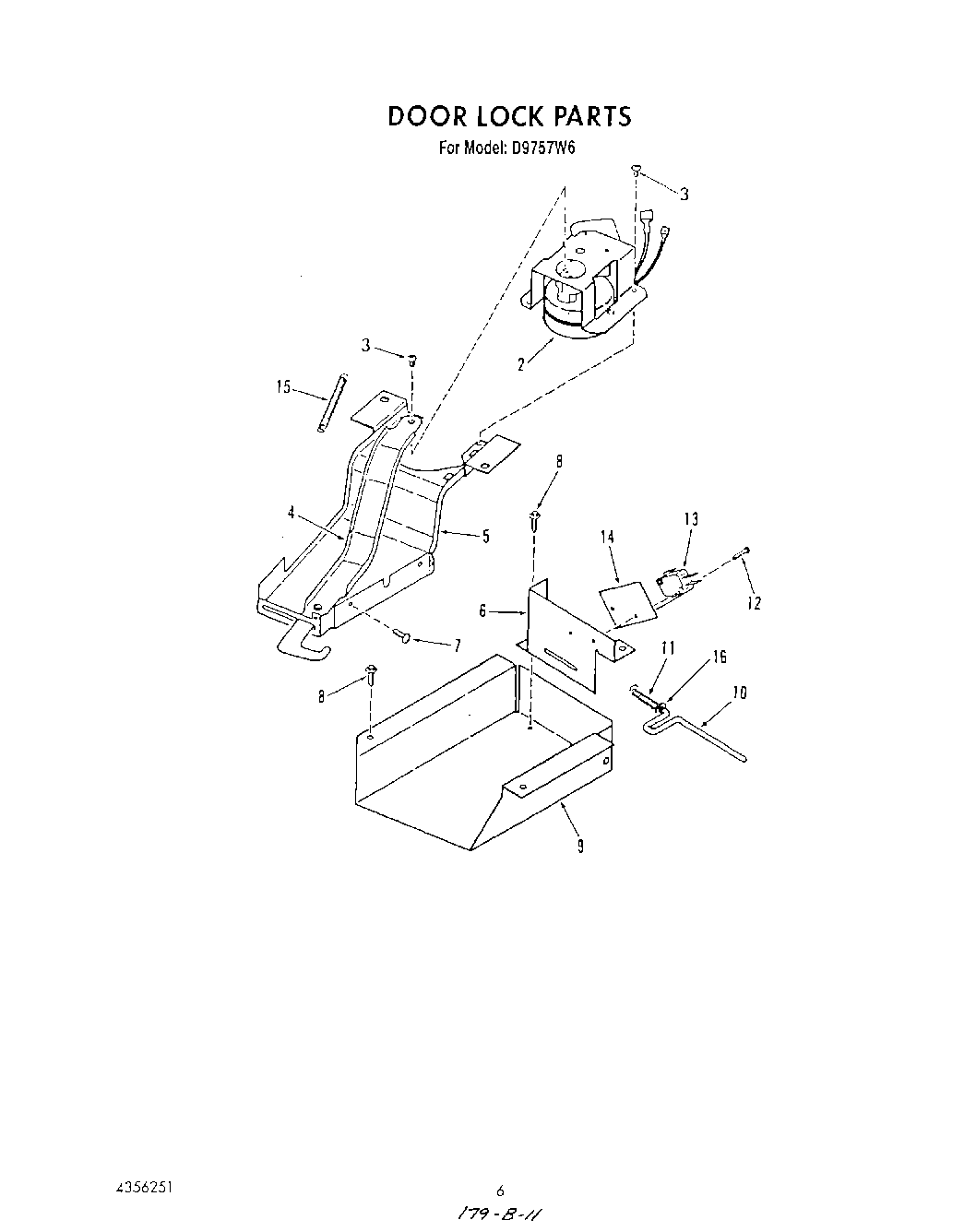

D9757W6 04 – DOOR LOCK

Products

Position	Product
2	Lock Motor Asm.
3	Screw, No.8-32 x 3/8
4	Lock Lever Asm.
5	Plate
6	Bracket, Door Switch
7	Screw No.10-32×1/2
8	W10850756 Whirlpool Screw
9	Lock Box
10	Actuator Pin
11	Spring
12	Screw
13	Switch, Micro
14	Insulator
15	Spring, Lock
16	Washer
