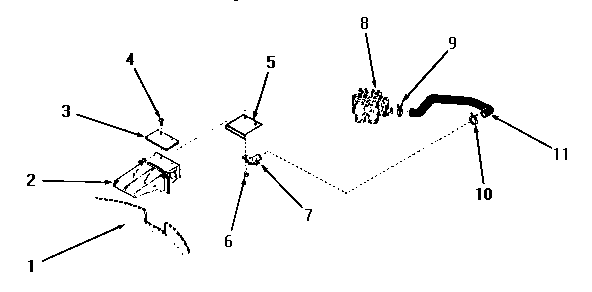

DA1040 22 – WATER INLET AND FILLER HOSE

Written by

Products

Position	Product
	ORDER GRAPHICS PANEL FROM THE SOURCE WHERE THE DRYER WAS PURCHASED. INCLUDE THECOMPLETE MODEL AND SERIAL NUMBERS WITH ORDER.
2	MAY 23480
3	MAY 23474
4	MAY 20375
5	MAY 23572
6	MAY 21752
7	MAY 23477
8	SEE NOTE GROUND WIRE, GREEN
9	MAY 80479
10	MAY 23478
11	MAY 25824
