DA3100 22 – TRANSMISSION ASSY – Aparts

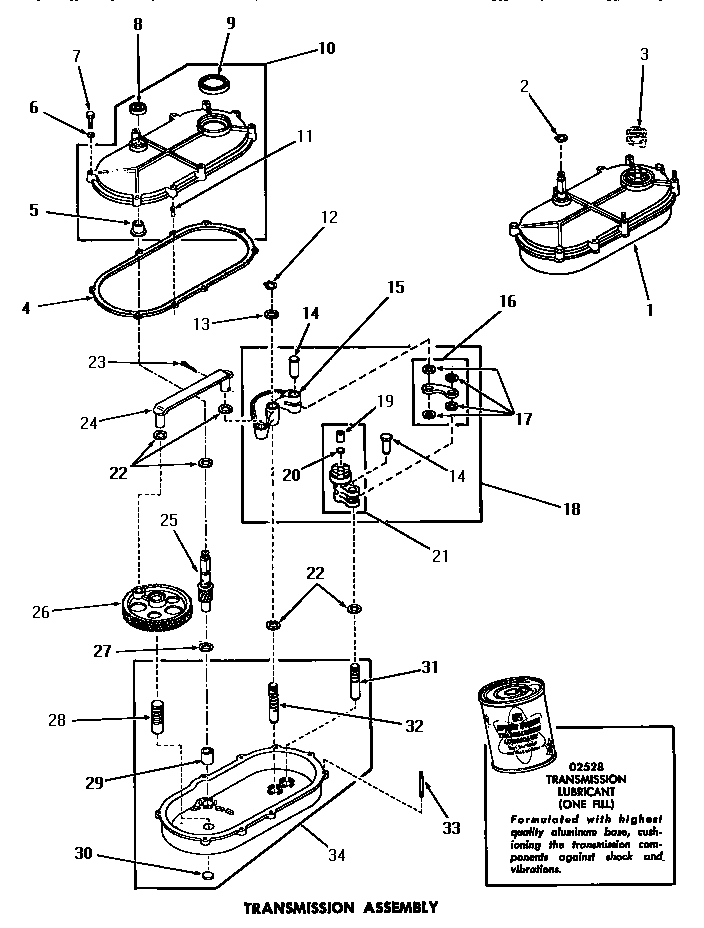

DA3100 22 – TRANSMISSION ASSY

Products

Position	Product
NI	MAY 02528
1	MAY 23828
3	SEE NOTE GROUND WIRE, GREEN
4	MAY 20059
5	MAY 20082
6	MAY 03189
7	MAY 20257
8	MAY 20200
9	MAY 20199
10	MAY 20216
11	MAY 20197
12	MAY 23751
14	MAY 01690
15	MAY 05005
16	MAY Y04999
17	MAY 20212
18	MAY 20220
19	MAY 01711
20	MAY Y02479
21	MAY 20219
22	MAY 01791
23	MAY 02578
24	MAY 03969
25	MAY 23645
26	MAY 02175
27	WASHER,.626IDX1.250ODX
28	MAY 03477
29	MAY 01993
30	MAY Y02769
31	MAY 01688
32	MAY 24817
33	MAY 20155
34	MAY 23927
