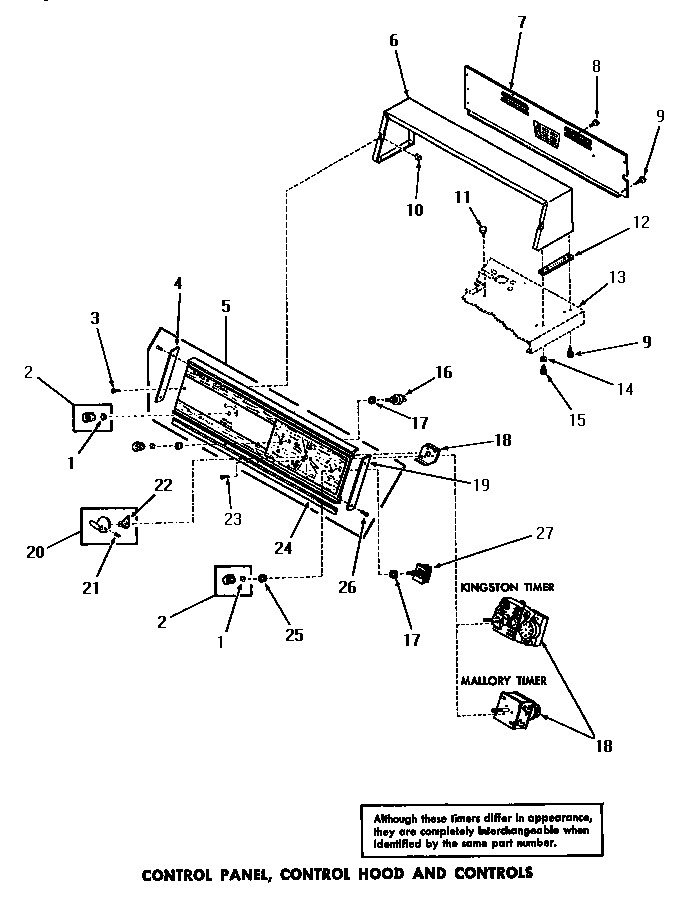

DA3101 10 – CONTROL PANEL, CONTROL HOOD & CONTROLS

DA3101 10 – CONTROL PANEL, CONTROL HOOD & CONTROLS

Written by

in

DA3101 10 – CONTROL PANEL, CONTROL HOOD & CONTROLS

Products

PositionProduct
1MAY 22244
2MAY 22245
3MAY 25232
4MAY 25072
5MAY 25185
6MAY 22881H
6MAY 22881A
6MAY 22881W
7MAY 22890GR
8WP3177991 Whirlpool Screw
9MAY 25724
10MAY 54038
11MAY 21393
12MAY 23028
13SEE NOTE GROUND WIRE, GREEN
14MAY 20493
15MAY 52150
16MAY 21300
18MAY 24828
18MAY 25966
19MAY 25073
20MAY 24858
21MAY 25285
22MAY 24857
23MAY 20272
24MAY 25071
25MAY 24205
26MAY 52864
