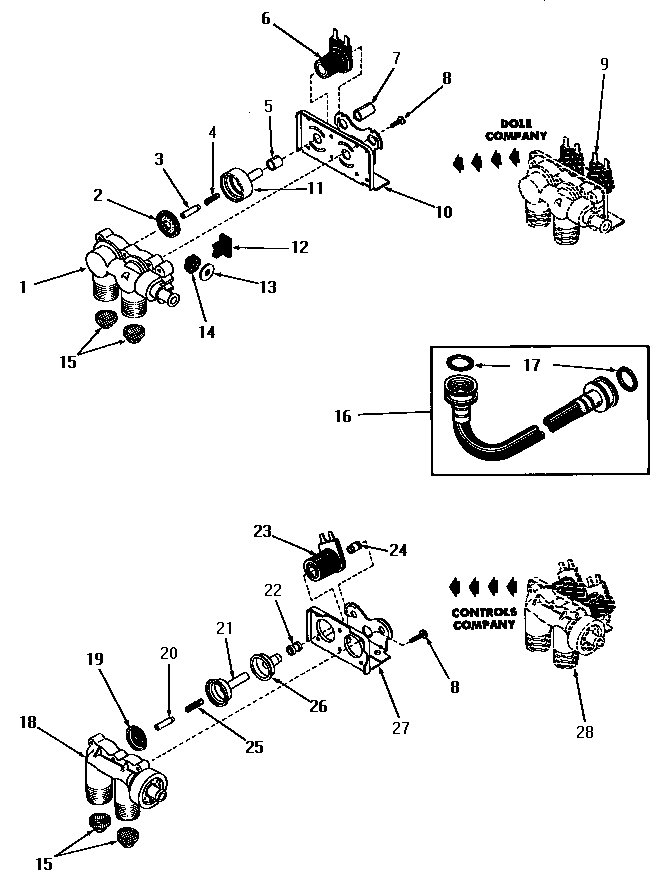

DA3201 04 – 25832 AND 25833 MIXING VALVE ASSEMBLIES

Products

PositionProduct
1MAY 24125
2MAY 24134
3MAY 24132
4MAY 24131
5MAY 24129
6MAY 24126
7MAY 24128
8MAY 25817C
10MAY Y24127
11MAY 24130
12MAY Y24135
13MAY 23224G
14MAY 21187C
14MAY 23224C
15MAY 24122
16MAY 20241
17MAY 20290
18MAY 24123
18MAY Y24124
19MAY 25817K
20MAY 25817H
21MAY 25817F
22MAY 25817D
23MAY 24596A
24MAY 25817M
25MAY 25817G
26MAY 25817E
27MAY 25817B
28SEE NOTE GROUND WIRE, GREEN
