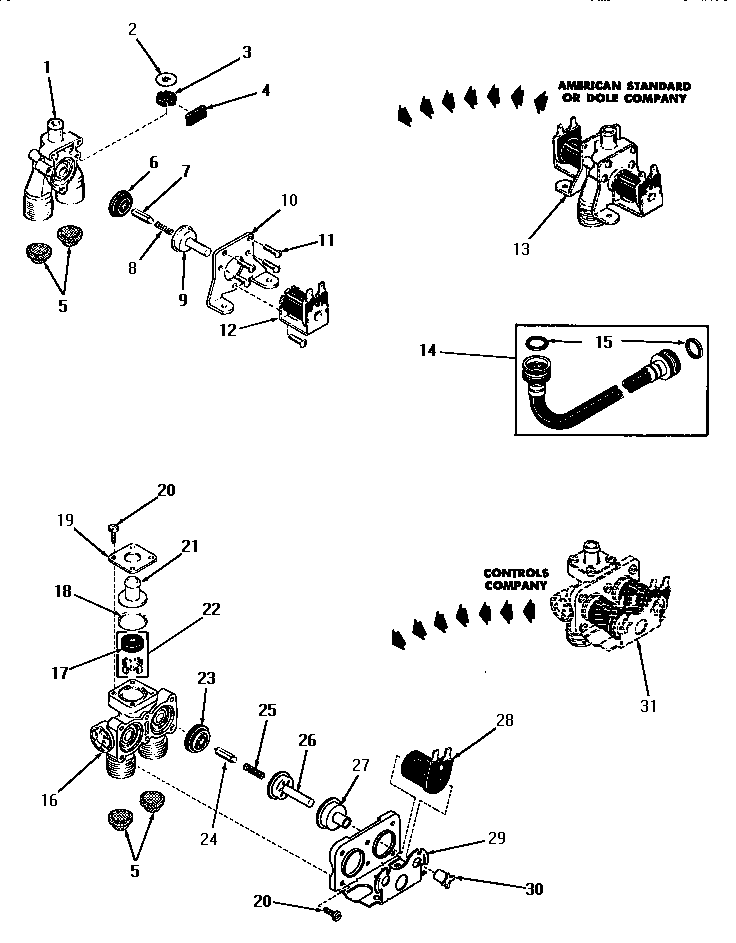

DA3780 13 – MIXING VALVE ASSEMBLIES

Products

Position	Product
1	MAY 20678
2	MAY 23224G
3	MAY 21187C
3	MAY 23224C
4	MAY 21561D
5	MAY 20181-0
6	MAY 23224F
7	MAY 23224D
8	MAY 23224E
9	MAY 23224B
10	MAY 21561E
11	MAY 21561G
12	MAY 21714A
14	MAY 20241
15	MAY 20290
16	MAY 24596Q
18	MAY 24596L
19	MAY 24596N
20	MAY 24596P
21	MAY 24596M
22	MAY 24597J
22	MAY 24596J
23	MAY 24596H
24	MAY 24596G
25	MAY 24596F
26	MAY 24596E
27	MAY 24596D
28	MAY 24596A
29	MAY 24596C
30	MAY 24596B
31	SEE NOTE GROUND WIRE, GREEN
