DA3781 07 – CONTROL PANEL, CONTROL HOOD AND CONTROLS – Aparts

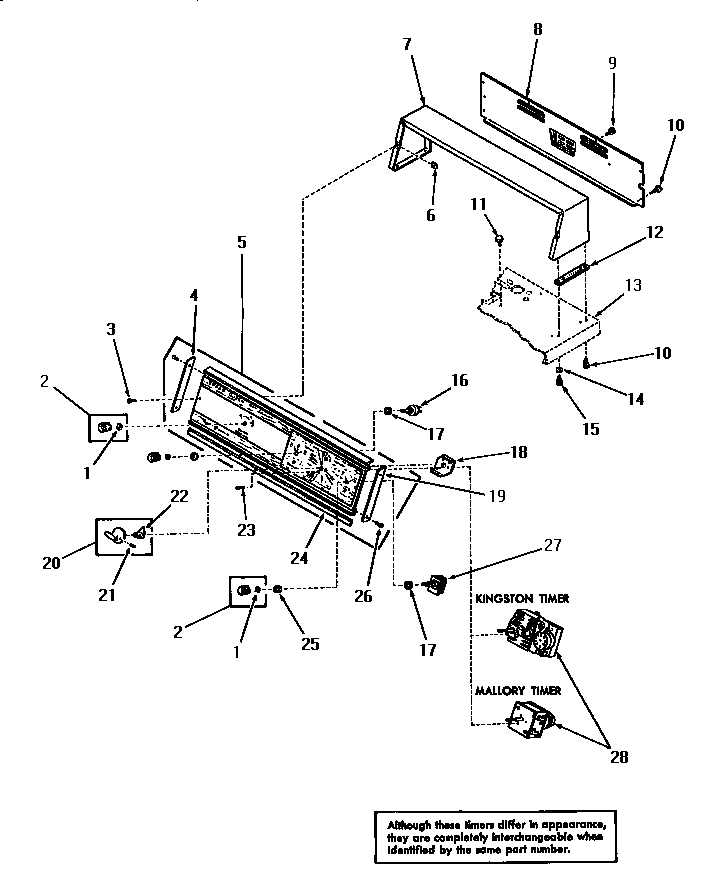

DA3781 07 – CONTROL PANEL, CONTROL HOOD AND CONTROLS

Products

Position	Product
1	MAY 22244
2	MAY 22245
3	MAY 25232
4	MAY 25072
5	MAY 26100
6	MAY 54038
7	MAY 22881H
7	MAY 22881W
7	MAY 22881A
8	MAY 22890GR
9	WP3177991 Whirlpool Screw
10	MAY 25724
11	MAY 21393
12	MAY 23028
13	SEE NOTE GROUND WIRE, GREEN
14	MAY 20493
15	MAY 52150
16	MAY 21300
17	MAY 91176
18	MAY 25966
19	MAY 25073
20	MAY 24858
21	MAY 25285
22	MAY 24857
23	MAY 20272
24	MAY 25071
25	MAY 24205
26	MAY 52864
28	MAY 24828
