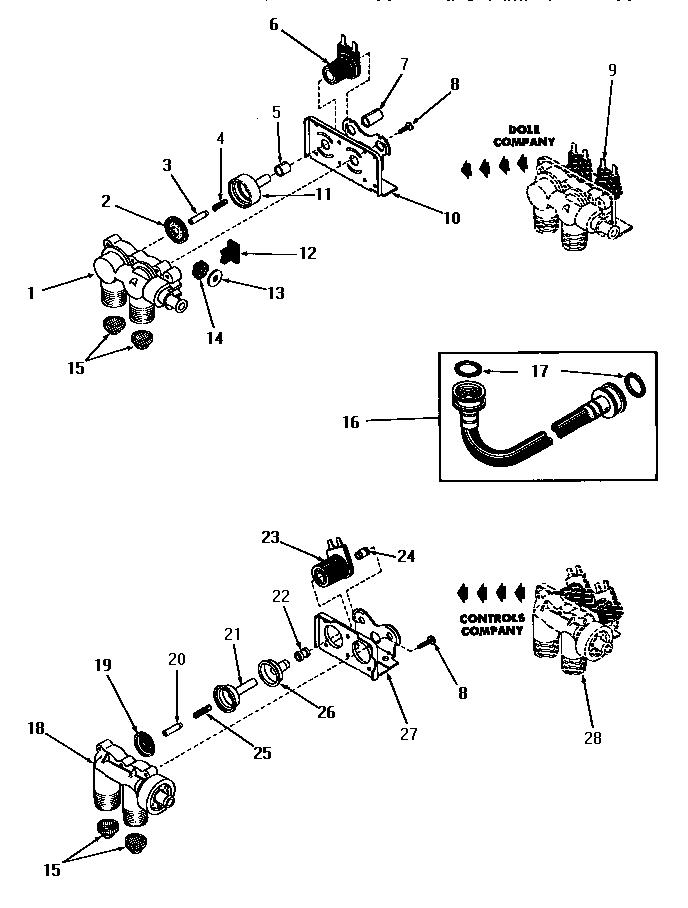

DA3781 14 – MIXING VALVE ASSEMBLIES

Products

Position	Product
1	MAY 24125
2	MAY 24134
3	MAY 24132
4	MAY 24131
5	MAY 24129
6	MAY 24126
7	MAY 24128
8	MAY 25817C
10	MAY Y24127
11	MAY 24130
12	MAY Y24135
13	MAY 23224G
14	MAY 21187C
14	MAY 23224C
15	MAY 24122
16	MAY 20241
17	MAY 20290
18	MAY 24123
18	MAY Y24124
19	MAY 25817K
20	MAY 25817H
21	MAY 25817F
22	MAY 25817D
23	MAY 24596A
24	MAY 25817M
25	MAY 25817G
26	MAY 25817E
27	MAY 25817B
28	SEE NOTE GROUND WIRE, GREEN
