DA3820 09 – CABINET TOP & LOADING DOOR – Aparts

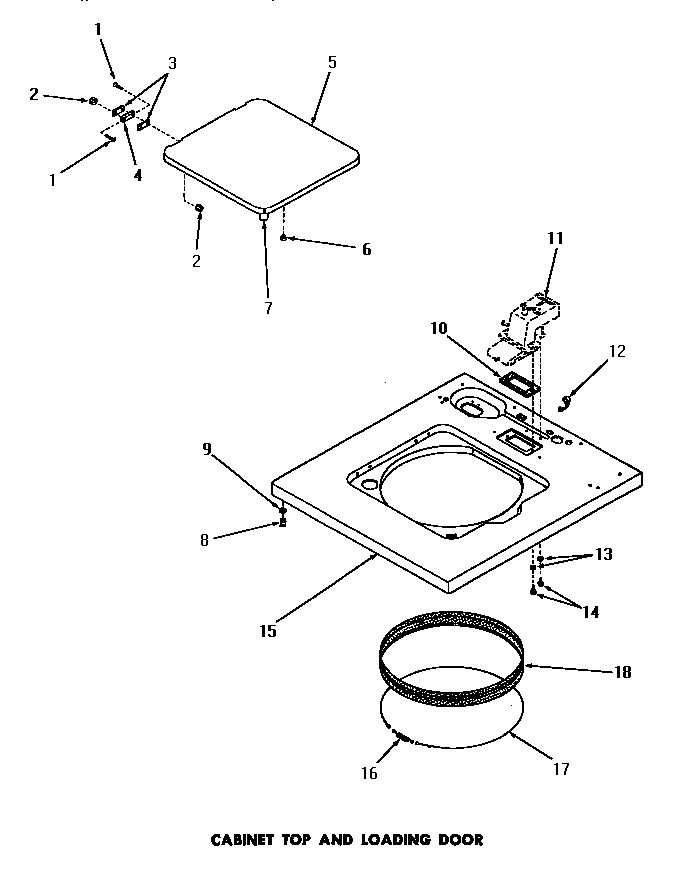

DA3820 09 – CABINET TOP & LOADING DOOR

Products

Position	Product
1	MAY 22649
2	MAY 21752
3	MAY 21584
4	MAY 21583
5	MAY 22271H
5	MAY 22271C
5	MAY 22271A
5	MAY 22271W
6	MAY 21176
7	MAY 25217
8	MAY 23007
9	MAY 24861
10	MAY 23255
11	SEE NOTE GROUND WIRE, GREEN
12	MAY 21903
13	MAY 20493
14	MAY 52150
15	MAY 25829C
15	MAY 24349A
15	MAY 24349C
15	MAY 24349H
15	MAY 24349W
15	MAY 25829A
15	MAY 25829W
15	MAY 25829H
16	MAY 20791
17	MAY 22352
18	MAY 25277
