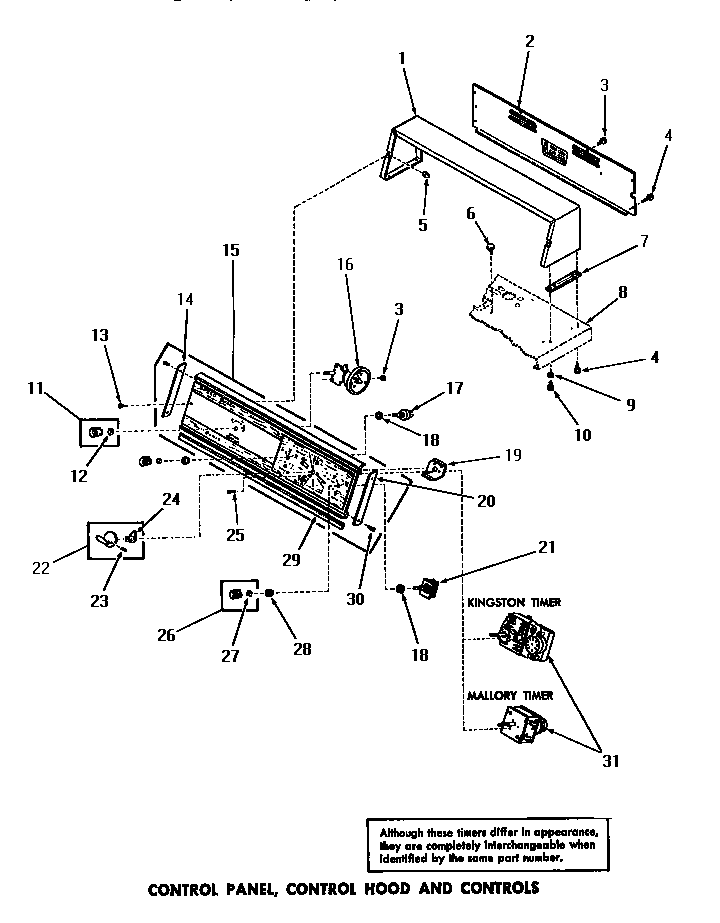

DA3820 10 – CONTROL PANEL, CONTROL HOOD & CONTROLS

Products

PositionProduct
1MAY 22881W
1MAY 22881H
1MAY 22881A
2MAY 22890GR
3WP3177991 Whirlpool Screw
4MAY 25724
5MAY 54038
6MAY 21393
7MAY 23028
8SEE NOTE GROUND WIRE, GREEN
9MAY 20493
10MAY 52150
13MAY 25232
14MAY 25072
15MAY 26661
16MAY 26051
17MAY 21300
18MAY 91176
19MAY 25966
20MAY 25073
21MAY 21302
22MAY 24858
23MAY 25285
24MAY 24857
25MAY 20272
26MAY 22245
27MAY 22244
28MAY 24205
29MAY 25071
30MAY 52864
31MAY 24756
