DA3821 02 – 25178 PUMP ASSY – Aparts

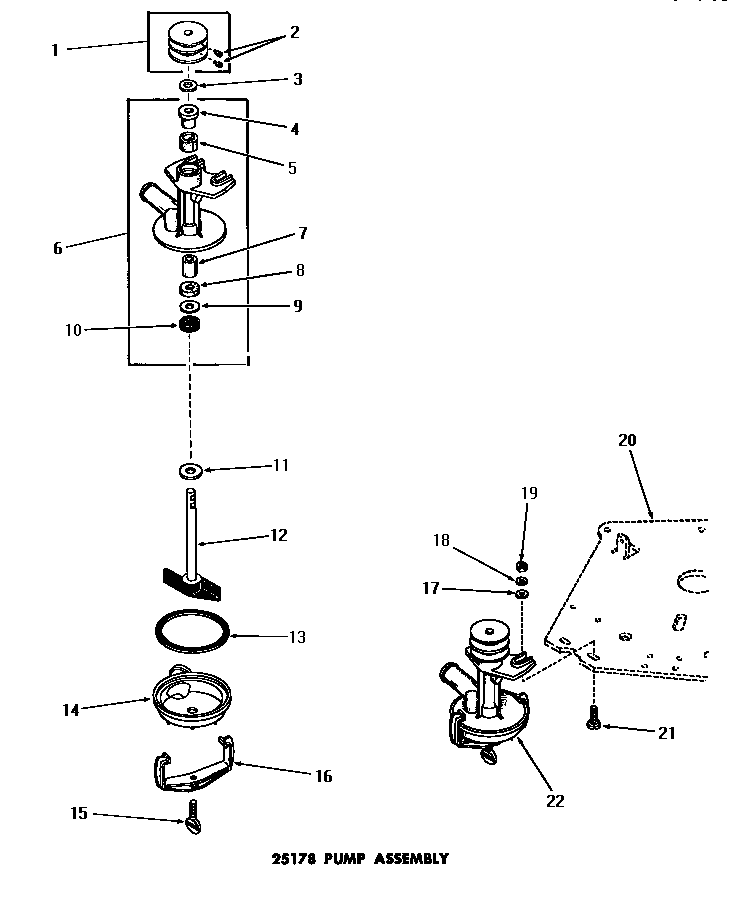

DA3821 02 – 25178 PUMP ASSY

Products

Position	Product
NI	MAY 131P3
1	MAY 23770
2	MAY 02771
3	MAY 20098
4	MAY 20072
5	MAY 26479
6	MAY 20763
7	MAY 20071
8	MAY 20094
9	MAY 20093
10	MAY 20095
11	MAY 20099
12	MAY 04372
13	MAY 20097
14	MAY 04316
15	MAY 20161
16	MAY 20066
17	MAY 20176
18	MAY 03189
19	MAY 20275
20	SEE NOTE GROUND WIRE, GREEN
21	MAY 24390
22	MAY 25178
