DA3821 10 – CONTROL PANEL, CONTROL HOOD & CONTROLS – Aparts

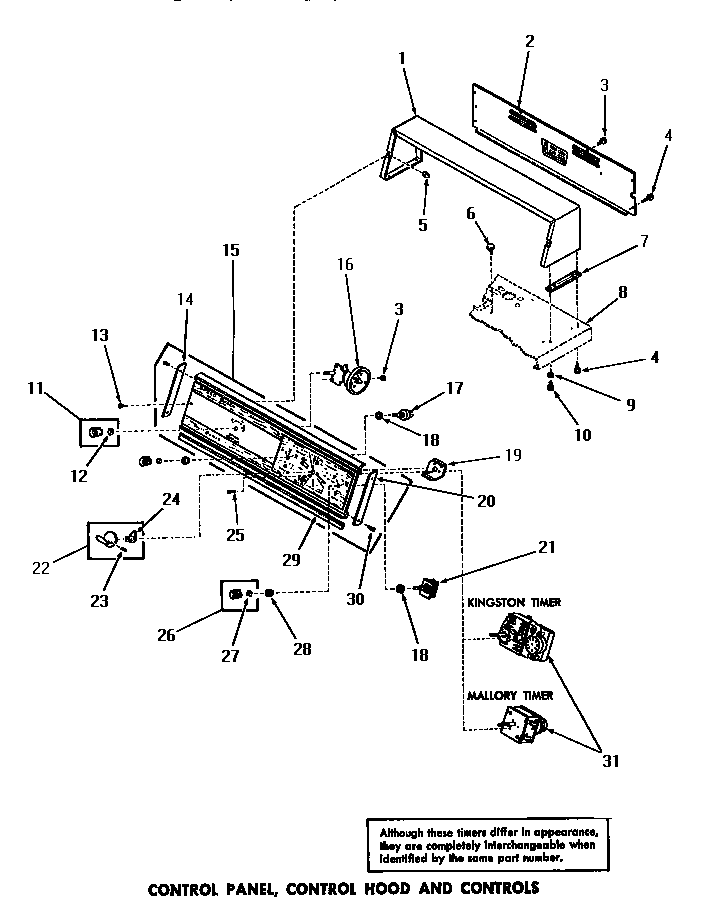

DA3821 10 – CONTROL PANEL, CONTROL HOOD & CONTROLS

Products

Position	Product
1	MAY 22881W
1	MAY 22881H
1	MAY 22881A
2	MAY 22890GR
3	WP3177991 Whirlpool Screw
4	MAY 25724
5	MAY 54038
6	MAY 21393
7	MAY 23028
8	SEE NOTE GROUND WIRE, GREEN
9	MAY 20493
10	MAY 52150
13	MAY 25232
14	MAY 25072
15	MAY 26661
16	MAY 26051
17	MAY 21300
18	MAY 91176
19	MAY 25966
20	MAY 25073
21	MAY 21302
22	MAY 24858
23	MAY 25285
24	MAY 24857
25	MAY 20272
26	MAY 22245
27	MAY 22244
28	MAY 24205
29	MAY 25071
30	MAY 52864
31	MAY 24756
