DA6101 12 – CONTROL PANEL & CONTROLS
Written by
in

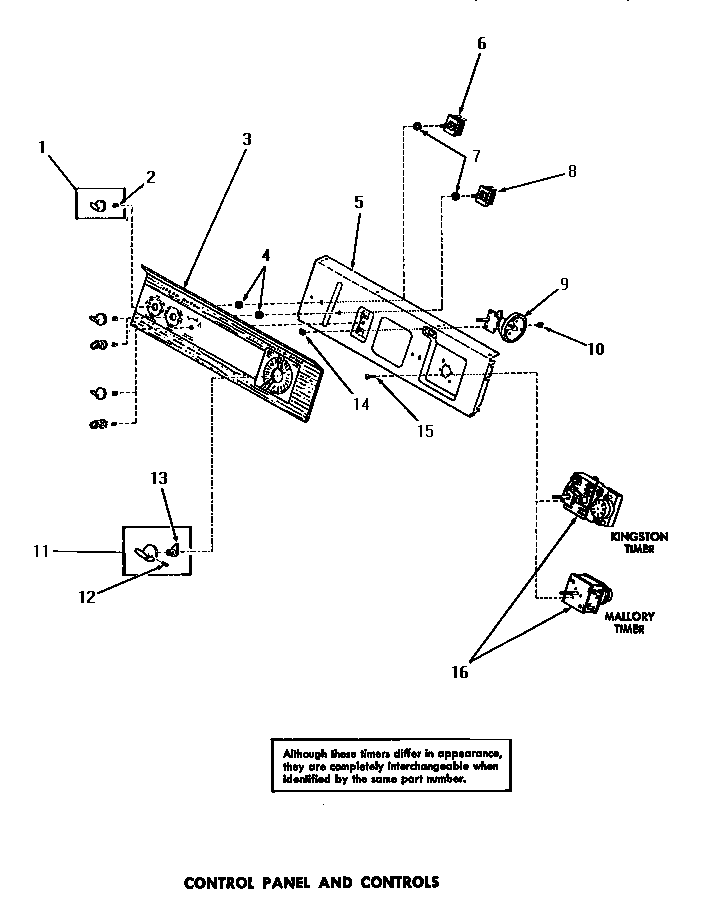

DA6101 12 – CONTROL PANEL & CONTROLS
Products
Position
Product
1
MAY 23402
2
MAY 23392
3
MAY 24765
4
MAY 24391
5
SEE NOTE GROUND WIRE, GREEN
6
MAY 24392
7
MAY 91176
8
MAY 24431
9
SWITCH,PRESSURE
10
WP90767 Whirlpool Screw
11
MAY 24858
12
MAY 25285
13
MAY 24857
14
MAY 24522
15
MAY 70212
16
MAY 24756
←
