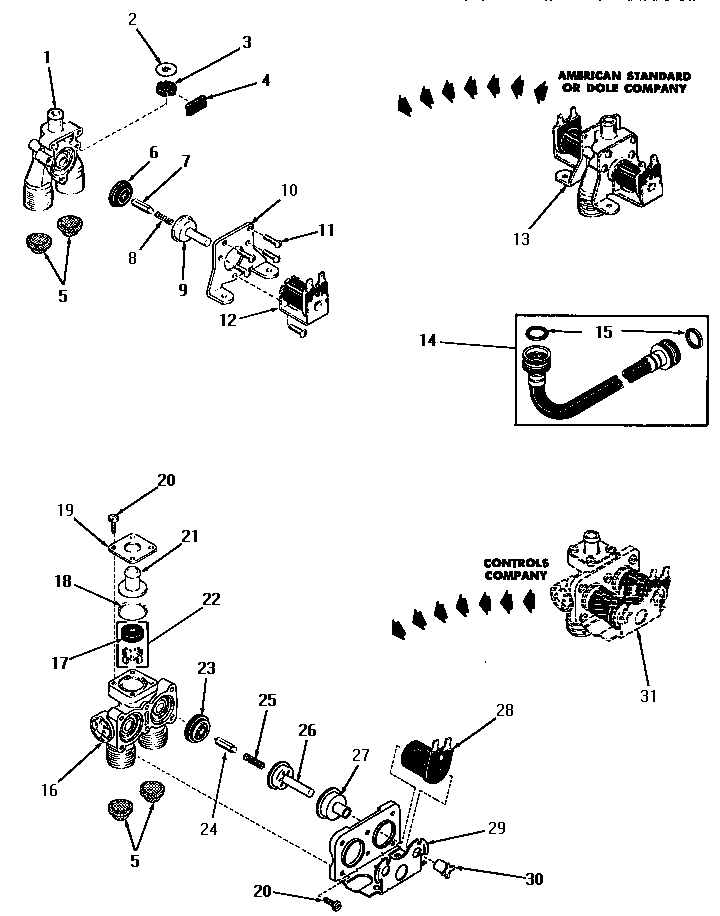

DA6111 02 – 24596 AND 24597 MIXING VALVE ASSEMBLIES

Products

PositionProduct
1MAY 20678
2MAY 23224G
3MAY 21187C
3MAY 23224C
4MAY 21561D
5MAY 20181-0
6MAY 23224F
7MAY 23224D
8MAY 23224E
9MAY 23224B
10MAY 21561E
11MAY 21561G
12MAY 21714A
14MAY 20241
15MAY 20290
16MAY 24596Q
18MAY 24596L
19MAY 24596N
20MAY 24596P
21MAY 24596M
22MAY 24597J
22MAY 24596J
23MAY 24596H
24MAY 24596G
25MAY 24596F
26MAY 24596E
27MAY 24596D
28MAY 24596A
29MAY 24596C
30MAY 24596B
31SEE NOTE GROUND WIRE, GREEN
