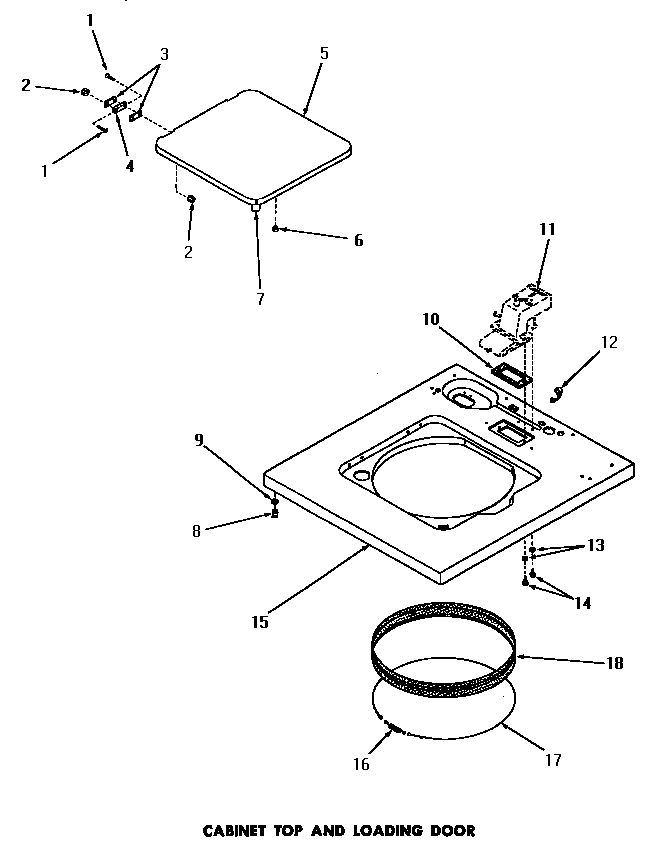

DA6191 10 – CABINET TOP & LOADING DOOR
Written by
in
DA6191 10 – CABINET TOP & LOADING DOOR
Products
Position
Product
1
MAY 22649
2
MAY 21752
3
MAY 21584
4
MAY 21583
5
MAY 22271H
5
MAY 22271C
5
MAY 22271A
5
MAY 22271W
6
MAY 21176
7
MAY 25217
8
MAY 23007
9
MAY 24861
10
MAY 23255
11
SEE NOTE GROUND WIRE, GREEN
12
MAY 21903
13
MAY 20493
14
MAY 52150
15
MAY 25829C
15
MAY 24349A
15
MAY 24349C
15
MAY 24349H
15
MAY 24349W
15
MAY 25829A
15
MAY 25829W
15
MAY 25829H
16
MAY 20791
17
MAY 22352
18
MAY 25277
←
