DA6200 13 – DRAIN – Aparts

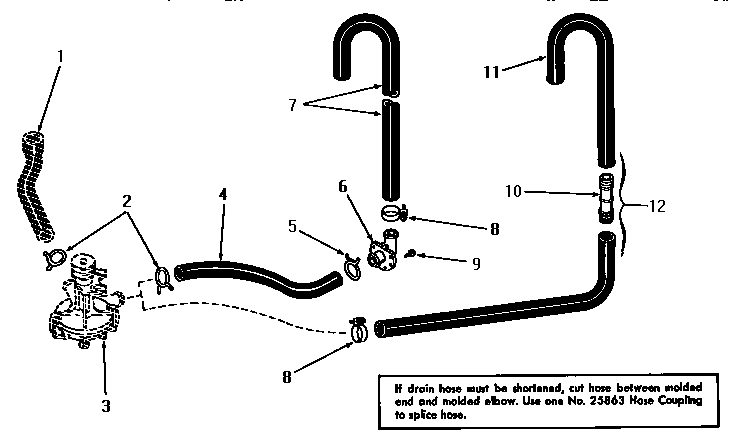

DA6200 13 – DRAIN

Products

Position	Product
2	MAY 20210
4	MAY 21254
5	MAY Y03698
6	MAY 23553
7	MAY 20240
8	WP285655 Whirlpool Hose Clamp
9	MAY 51784
10	WP16272 Whirlpool Hose Coupling
11	MAY 25182
12	SEE NOTE GROUND WIRE, GREEN
