DA6223 24 – SUDS-WATER SAVER ASSY

DA6223 24 – SUDS-WATER SAVER ASSY

Written by

in

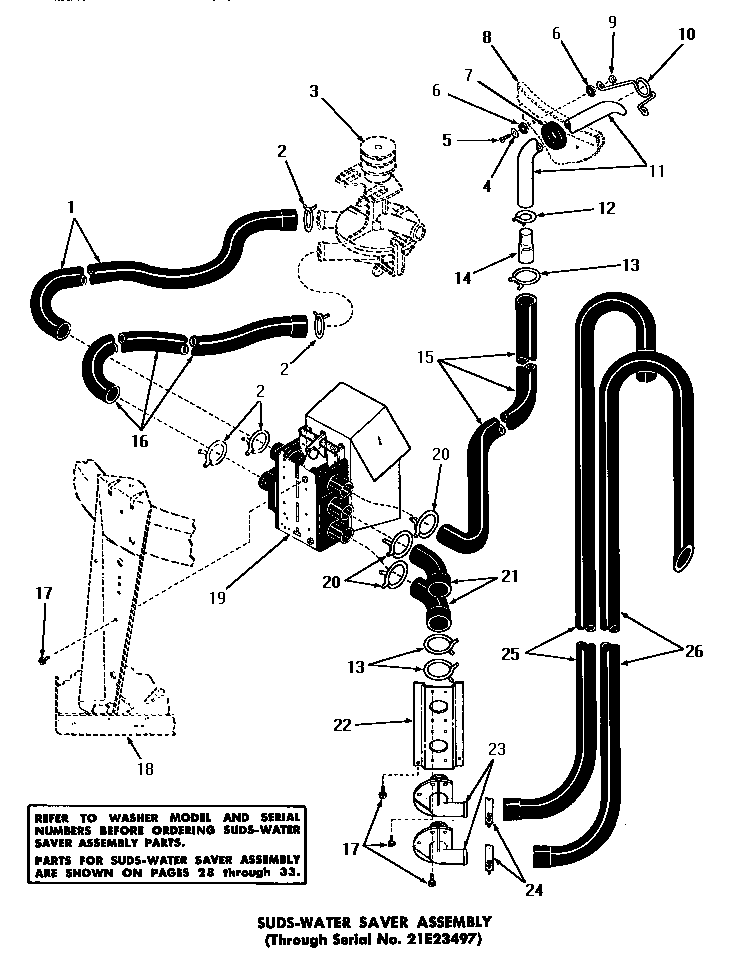

DA6223 24 – SUDS-WATER SAVER ASSY

Products

Position	Product
1	MAY 24576
2	MAY 20210
4	MAY 20492
5	MAY 21081
6	MAY 02928
7	MAY 20118
9	MAY 21080
10	MAY 22355
11	MAY 22356
12	MAY Y22671
13	MAY Y03698
14	MAY 21086
15	MAY 24581
16	MAY 24575
17	MAY 51784
18	SEE NOTE GROUND WIRE, GREEN
19	MAY 25053
20	MAY 21372
21	MAY 24574
22	MAY 23560
23	MAY 23553
24	WP285655 Whirlpool Hose Clamp
25	MAY 20240
26	MAY 22627
