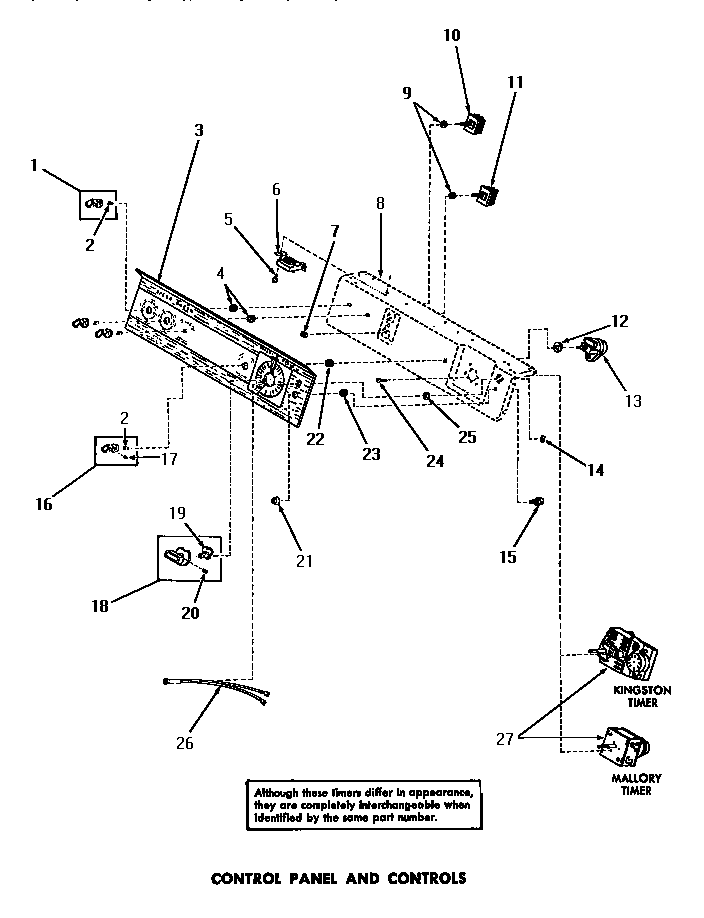

DA9011 12 – CONTROL PANEL & CONTROLS

Products

Position	Product
1	MAY 24291
2	MAY 23392
3	MAY Y25147
4	MAY 24391
5	WP3177991 Whirlpool Screw
6	MAY 21975
7	MAY 24522
8	SEE NOTE GROUND WIRE, GREEN
9	MAY 91176
10	MAY 24392
11	MAY 24431
12	MAY 25820
13	MAY 25054
14	MAY 25042
15	MAY 23401
16	MAY 25049
17	MAY Y22579
18	MAY 24290
19	MAY 24283
20	MAY 20310
21	MAY 23399
22	MAY 23406
23	MAY 23400
24	MAY 70212
25	MAY 25043
26	MAY 25045
27	MAY 25146
