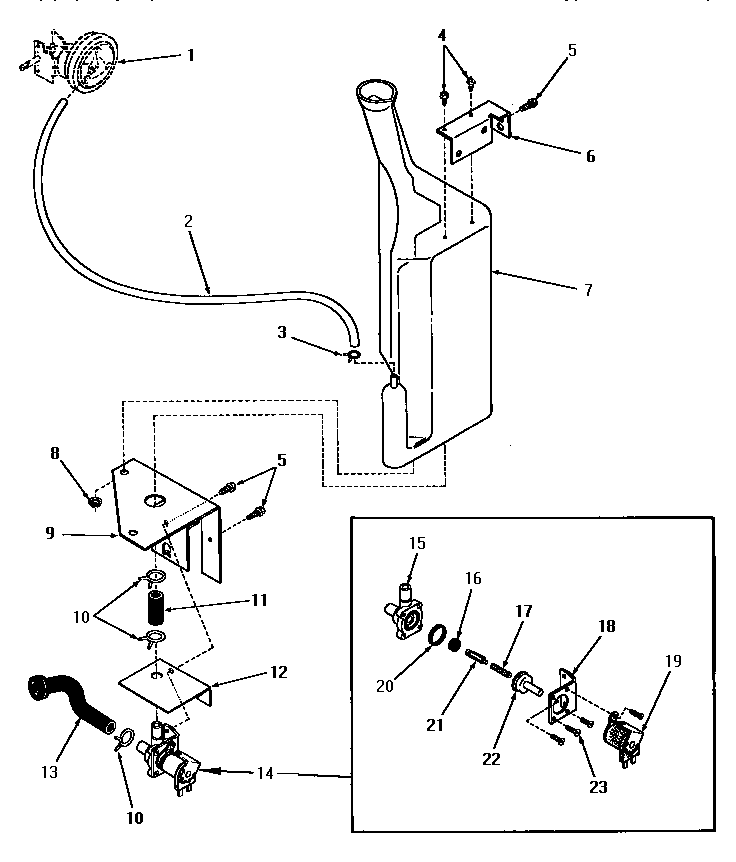

DA9041 22 – RESERVOIR & DRAIN VALVE

DA9041 22 – RESERVOIR & DRAIN VALVE

Written by

in

DA9041 22 – RESERVOIR & DRAIN VALVE

Products

Position	Product
1	SEE NOTE GROUND WIRE, GREEN
2	MAY 24444
3	MAY Y22294
4	MAY 52150
5	MAY 51784
6	MAY 24394
7	MAY 24430
8	MAY 24441
9	MAY 24393
10	MAY 80479
11	MAY 24440
12	MAY 25044
13	MAY 24437
14	MAY 24438
15	MAY 24438G
16	MAY 24438F
17	MAY 24438C
18	MAY 24438H
19	MAY 24438A
20	MAY 24438E
21	MAY 24438D
22	MAY 24438B
23	MAY 21561G
