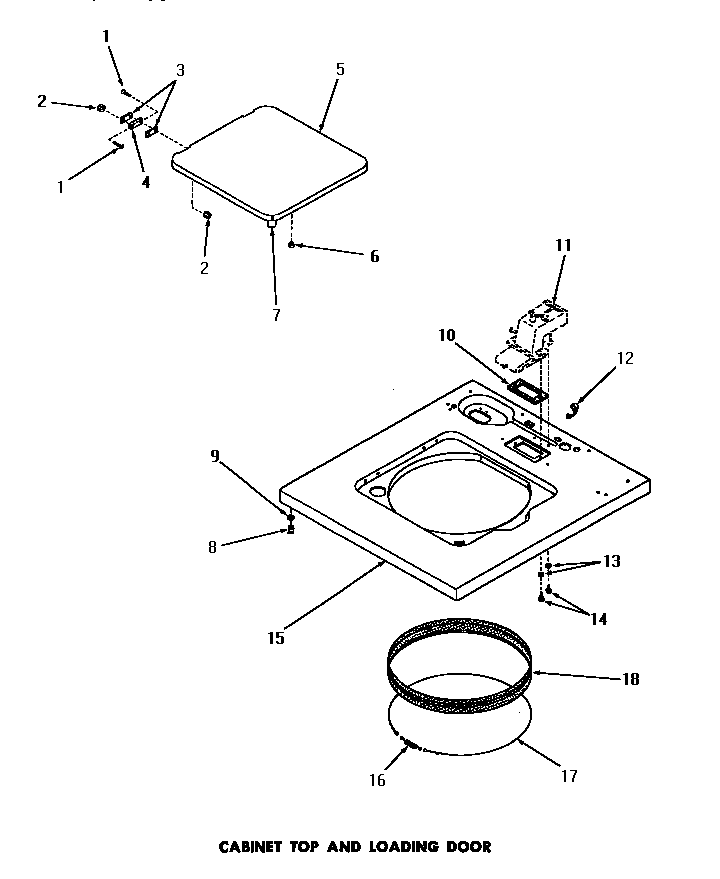

DA9043 12 – CABINET TOP & LOADING DOOR

DA9043 12 – CABINET TOP & LOADING DOOR

Written by

in

DA9043 12 – CABINET TOP & LOADING DOOR

Products

Position	Product
1	MAY 22649
2	MAY 21752
3	MAY 21584
4	MAY 21583
5	MAY 22271H
5	MAY 22271W
5	MAY 22271C
5	MAY 22271A
6	MAY 21176
7	MAY 25217
8	MAY 23007
9	MAY 24861
10	MAY 23255
11	SEE NOTE GROUND WIRE, GREEN
12	MAY 21903
13	MAY 20493
14	MAY 52150
15	MAY 25830W
15	MAY 25830H
15	MAY 25830C
15	MAY 25830A
15	MAY 24355W
15	MAY 24355H
15	MAY 24355C
15	MAY 24355A
16	MAY 20791
17	MAY 22352
18	MAY 25277
