DA9103 14 – CONTROL PANEL AND CONTROLS

DA9103 14 – CONTROL PANEL AND CONTROLS

Written by

in

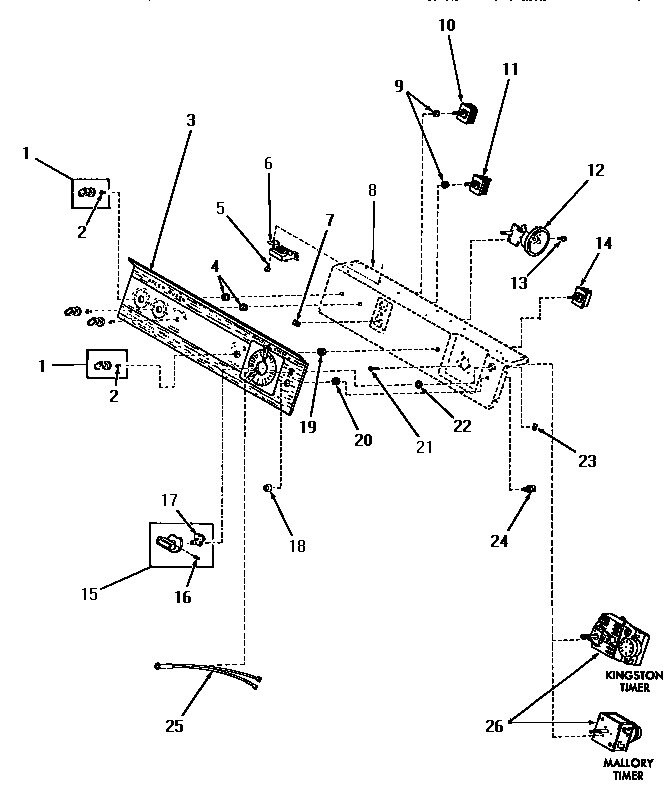

DA9103 14 – CONTROL PANEL AND CONTROLS

Products

Position	Product
1	MAY 24291
2	MAY 23392
3	MAY 24504
4	MAY 24391
5	WP3177991 Whirlpool Screw
6	MAY 21975
7	MAY 24522
8	SEE NOTE GROUND WIRE, GREEN
9	MAY 91176
10	MAY 24392
11	MAY 24431
12	MAY 26051
13	WP90767 Whirlpool Screw
14	MAY 24580
15	MAY 24290
16	MAY 20310
17	MAY 24283
18	MAY 23399
19	MAY 23406
20	MAY 23400
21	MAY 70212
22	MAY 25043
23	MAY 25042
24	MAY 23401
25	MAY 25045
26	MAY 24815
