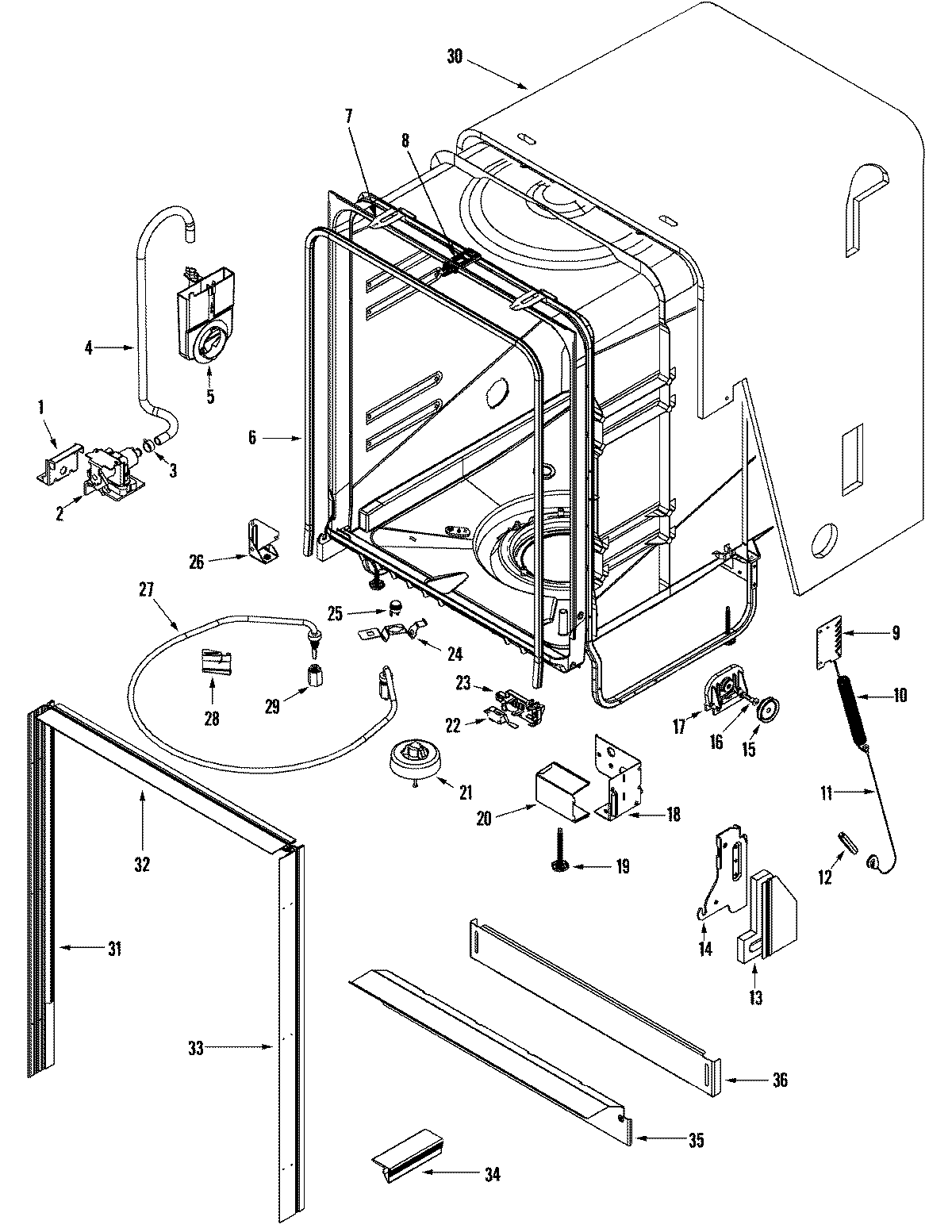

DB3710DB 06 – TUB

DB3710DB 06 – TUB

Written by

in

DB3710DB 06 – TUB

Products

PositionProduct
1MAY 99002629
2W11082871 Whirlpool Dishwasher Inlet Valve
2MAY 99002553
3WP596669 Whirlpool Hose Clamp
4WP99002852 Whirlpool Dishwasher Injector Hose
5MAY 99002645
5Grill,Air/Water Inlet
5MAY 99002955
5MAY 99002954
5MAY 99002646
6MAY 99002588
7MAY 99002648
8MAY 99003357
8WP99002644 Whirlpool Dishwasher Door Striker
96-918346 Whirlpool Dishwasher Bracket
10WP99002598 Whirlpool Door Spring
11WP99003446 Whirlpool Door Cable
13BACKER, HINGE SEAL (LT)
13BACKER, HINGE SEAL (RT)
14MAY 99002928
14MAY 99002927
15WP99002608 Whirlpool Dishwasher Cable Roller
16MAY 99002609
17MAY 99002607
18BRACKET, JUNCTION BOX SUPPORT
19WPW10143258 Whirlpool Dishwasher Leg Leveler
20MAY 912365
20MAY 99002638
21MAY 99002630
22MAY 99002631
23WP3390631 Whirlpool Screw
23MAY 99002943
24MAY 99002634
25MAY 99002633
26SCREW 10-32X.400 (T-20 HEAD)
26BRACKET, SUPPORT (LT)
27MAY 99002973
27W10283681 Whirlpool Dishwasher Heater
28WP6-917262 Whirlpool Dishwasher Heater Bracket
29WP6-920168 Whirlpool Dishwasher Heater Nut
30FASTENER, INSULATION
30WPW10223013 Whirlpool Dishwasher Insulation Pad
31MAY 99002690
32MAY 99002723
33MAY 99002692
33MAY 99002691
34GAP SEAL, TOE KICK (BLK)
35SUPPORT, FRONT (W/SEALS)(BLK)
36Damper, Toe Panel (Black)
36PANEL, TOE (W/DAMPER-BLK)
36WP6-912366 Whirlpool Dishwasher Screw
