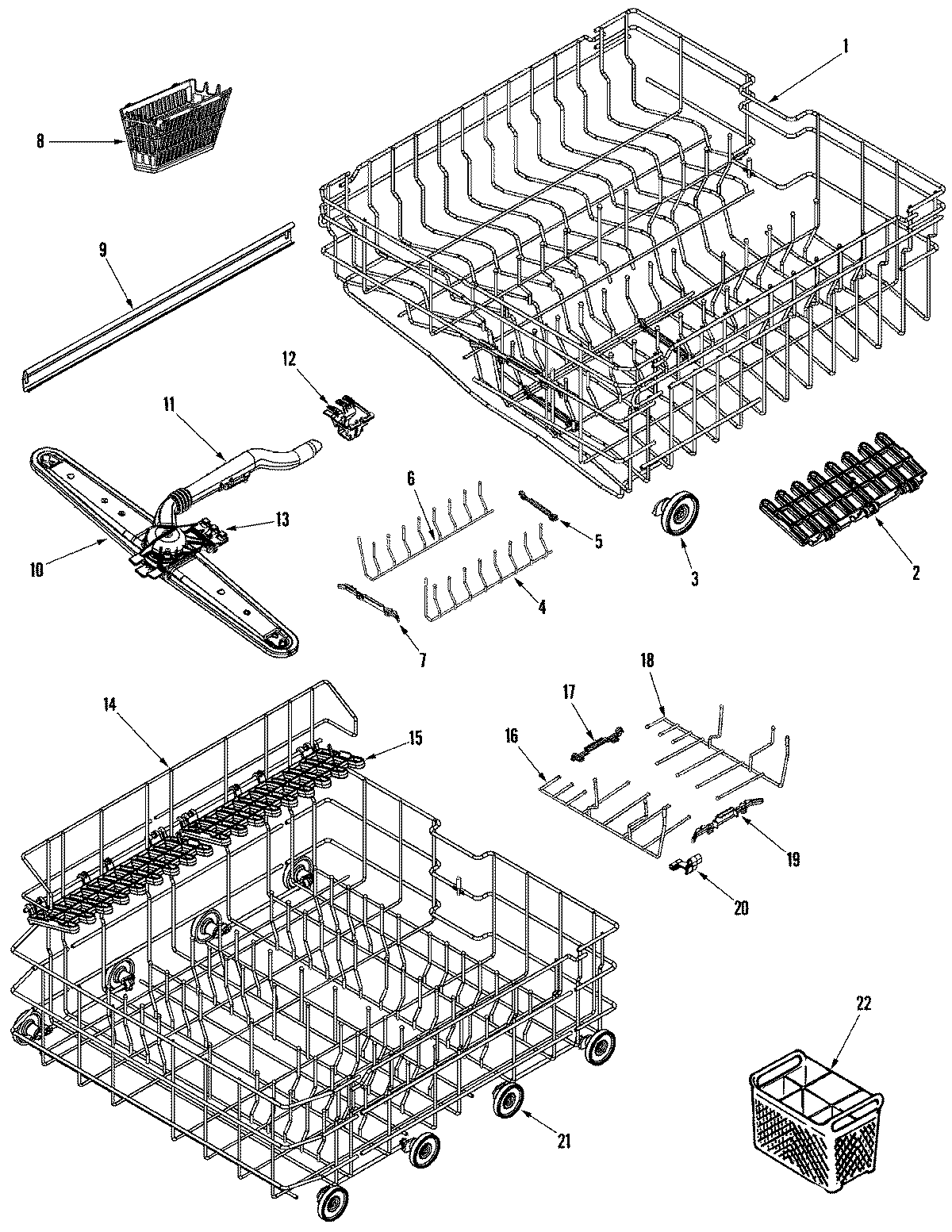

DB3710DW 05 – TRACK & RACK ASSEMBLY

Products

Position	Product
1	MAY 99003286
2	MAY 99003006
3	WP99002947 Whirlpool Tub Wheel
4	WP99003496 Whirlpool Convertible Row Tine
5	MAY 99003288
7	MAY 99003289
8	MAY 99003001
9	WPW10261227 Whirlpool Dishwasher Stop Assembly
9	TRACK, RACK
10	SCREW, TRUSS HEAD (10-18X.75)
10	WP99003070 Whirlpool Dishwasher Wash Arm
11	WASH MANIFOLD ASSY (UPR)
12	99002945 Whirlpool Dishwasher Upper Wash Manifold Clip
13	CLIP, UPR WASH MANIFOLD (FRT)
14	MAY 99003287
14	MAY 99002905
15	MAY 99003002
16	12002750 Whirlpool Dishwasher Convertible Tine Kit
17	MAY 99003003
19	MAY 99003004
20	MAY 99003005
21	WP99002780 Whirlpool Lower Wheel Assembly
22	WP6-918873 Whirlpool Silverware Basket
