DB5710DT 03 – PUMP & MOTOR

DB5710DT 03 – PUMP & MOTOR

Written by

in

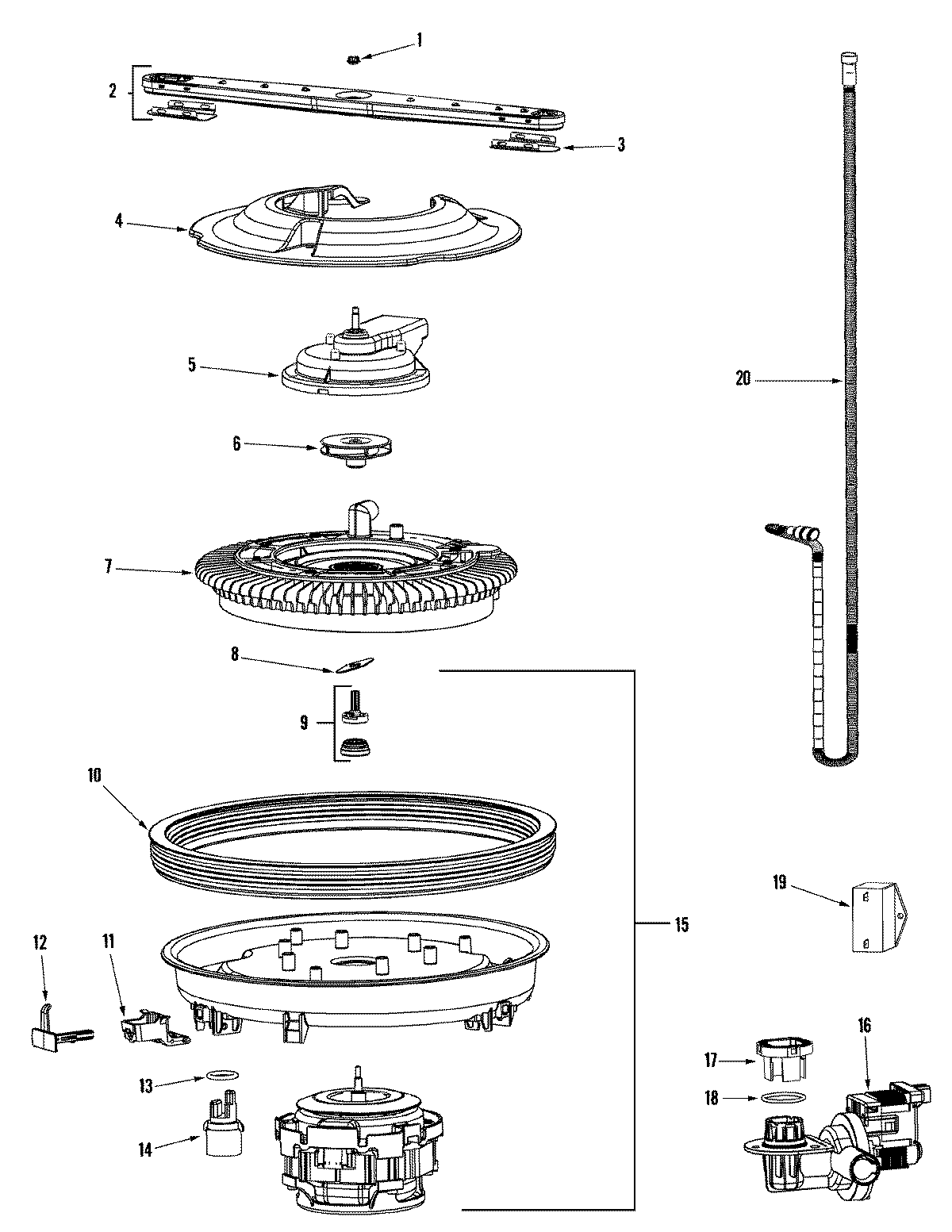

DB5710DT 03 – PUMP & MOTOR

Products

PositionProduct
1WP99002654 Whirlpool Nut
2WP6-917642 Whirlpool Dishwasher Wash Arm
3MAY 99002653
4WPW10166788 Whirlpool Dishwasher Filter Frame
4MAY 99002666
5SCREW, DISCHARGE HOUSING
5DISCHARGE HOUSING ASSY (UPR)
6MAY 99002987
6WP99002659 Whirlpool Impeller
7SCREW, STAINLESS PAN HEAD
7WPW10192799 Whirlpool Dishwasher Accumulator
8WP99002658 Whirlpool Dishwasher Chopper
8MAY 99003427
9MAY 99002981
1012002361 Whirlpool Dishwasher Gasket, Pump (W/SILICONE)
11MAY 99003056
12MAY 99003057
1399002651 Whirlpool Dishwasher O-RING, TURBIDITY Sensor
14WPW10120019 Whirlpool Dishwasher Sensor
14SCREW, No.8X1/2 HEX WASHER HEAD
15MAY 6-919963
16MAY 99002815
16SCREW, TRUSS HEAD (10-18X.75)
16DRAIN PUMP ASSEMBLY
17MAY 99003058
18MAY 99002857
19CAPACITOR, MOTOR
19SCREW 10-32X.400 (T-20 HEAD)
20WP99002652 Whirlpool Drain Hose
20WP99002656 Whirlpool Dishwasher Drain Clamp
