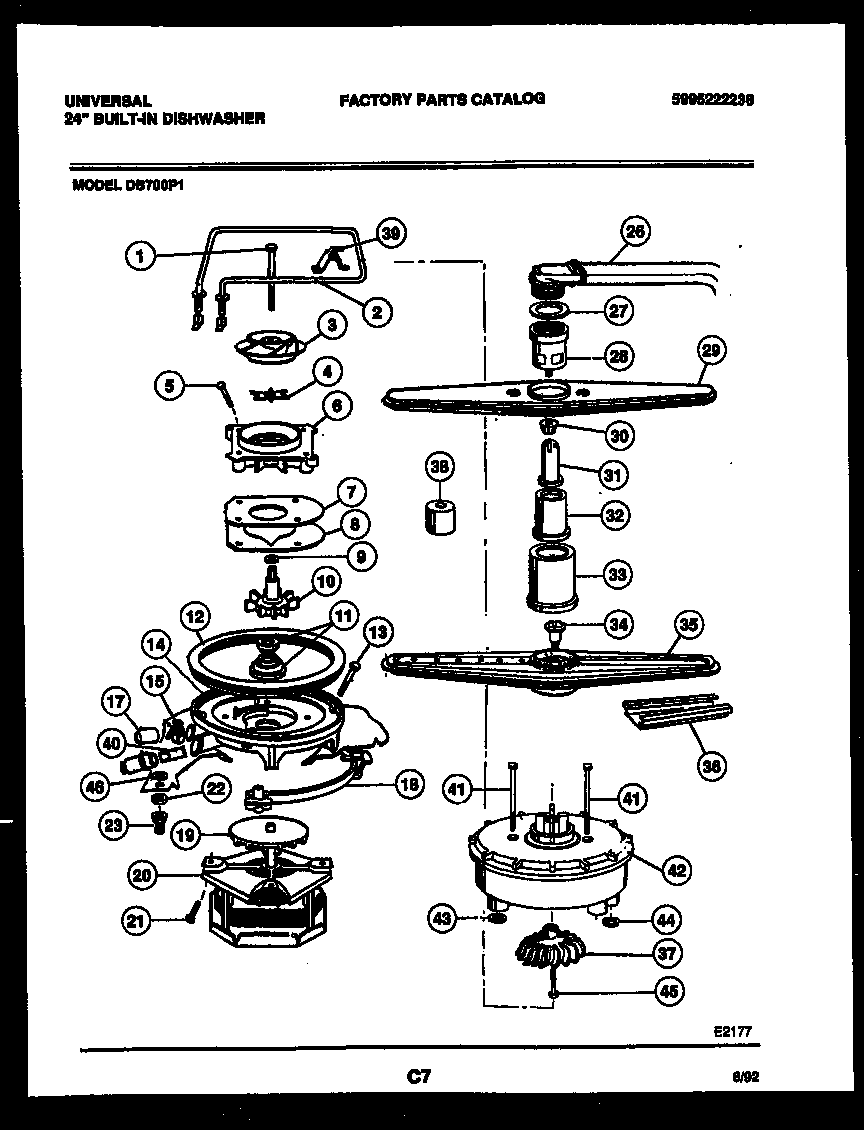

DB700P1 06 – MOTOR PUMP PARTS

Products

Position	Product
1	WCI 5300806353
2	WCI 5300809584
3	5300809918 Frigidaire Dishwasher Upper Impeller
4	5300809920 Frigidaire Dishwasher Blade Assembly
5	WCI 5300807359
6	WCI 5300809921
7	WCI 5300809006
8	WCI 5300809007
9	5300806521 Frigidaire Dishwasher Filter O-Ring
10	PUMP IMPELLER KIT
11	WCI 5300803903
12	5300809586 Frigidaire Dishwasher Gasket
13	WCI 5300807268
14	PUMP HOUSING
15	CLAMP
17	WCI 5300808174
18	WCI 5300809590
19	WCI 5300809366
20	WCI 5300809984
21	WCI 5300809022
22	WASHER
23	154106202 Frigidaire Dishwasher Heater Nut
26	WCI 5300808185
27	WCI 5300808184
28	WCI 5300808183
29	SPRAY ARM ASSEMBLY
30	WCI 5300808181
31	WCI 5300808180
32	WCI 5300808179
33	WCI 5300808178
34	WCI 5300809018
35	WCI 5300809954
36	WCI 5300809938
37	WCI 5300809014
38	WCI 5300803923
39	HEATER BRACKET
39A	SCREW-BRACKET (2)
40	WCI 5300809937
41	SCREW-10 X 2 7/8``
44	FILTER BODY ASSEMBLY
45	SCREW-8 X 3/4``
46	WCI 154064901
