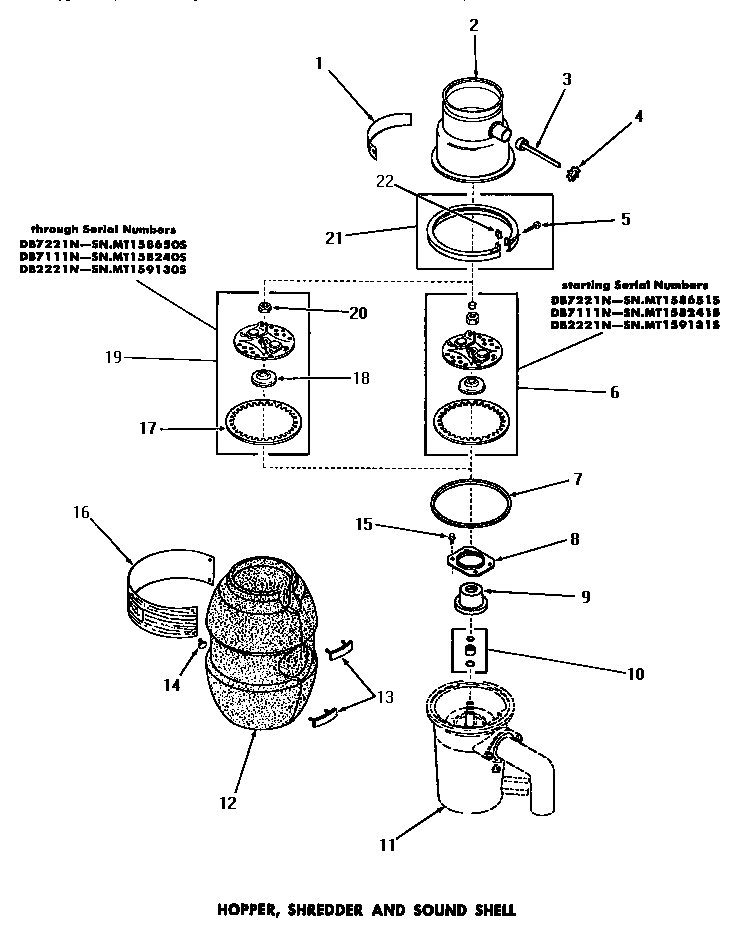

DB7221N 01 – HOPPER, SHREDDER & SOUND SHELL

DB7221N 01 – HOPPER, SHREDDER & SOUND SHELL

Written by

in

DB7221N 01 – HOPPER, SHREDDER & SOUND SHELL

Products

PositionProduct
1MAY 80908
2MAY Y80881
3MAY Y80830
4MAY Y80831
5MAY Y80828
6MAY 80837
7MAY Y80882
8MAY 80893
9MAY Y80894
10MAY Y80884
11SEE NOTE GROUND WIRE, GREEN
12MAY Y80887
13MAY Y80835
14MAY 80906
15MAY Y80892
16MAY Y80914
17MAY Y80891
18MAY Y80890
19MAY 80889
20MAY Y80888
21MAY Y80883
22MAY Y80829
