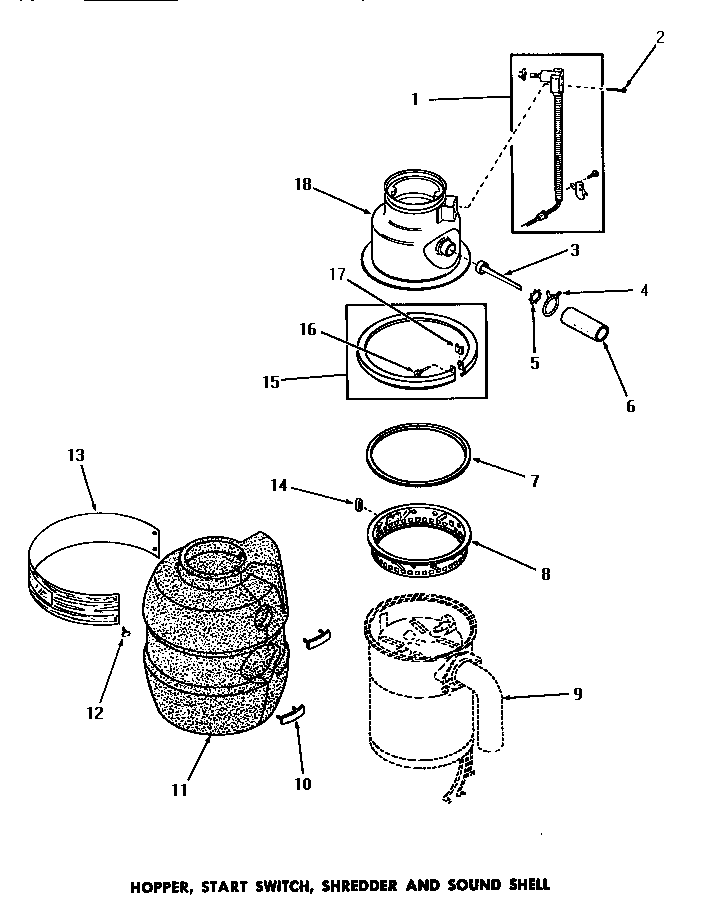

DB8181N 01 – HOPPER/START SW/SHREDDER & SOUND SHELL

DB8181N 01 – HOPPER/START SW/SHREDDER & SOUND SHELL

Written by

in

DB8181N 01 – HOPPER/START SW/SHREDDER & SOUND SHELL

Products

PositionProduct
1MAY Y80864
2MAY Y80863
3MAY Y80830
4MAY Y80833
5MAY Y80831
6MAY Y80832
7MAY 80826
8MAY 80842
9SEE NOTE GROUND WIRE, GREEN
10MAY Y80835
11MAY Y80834
12MAY 80906
13MAY 80879
15MAY Y80841
16MAY Y80828
17MAY Y80829
18MAY Y80825
