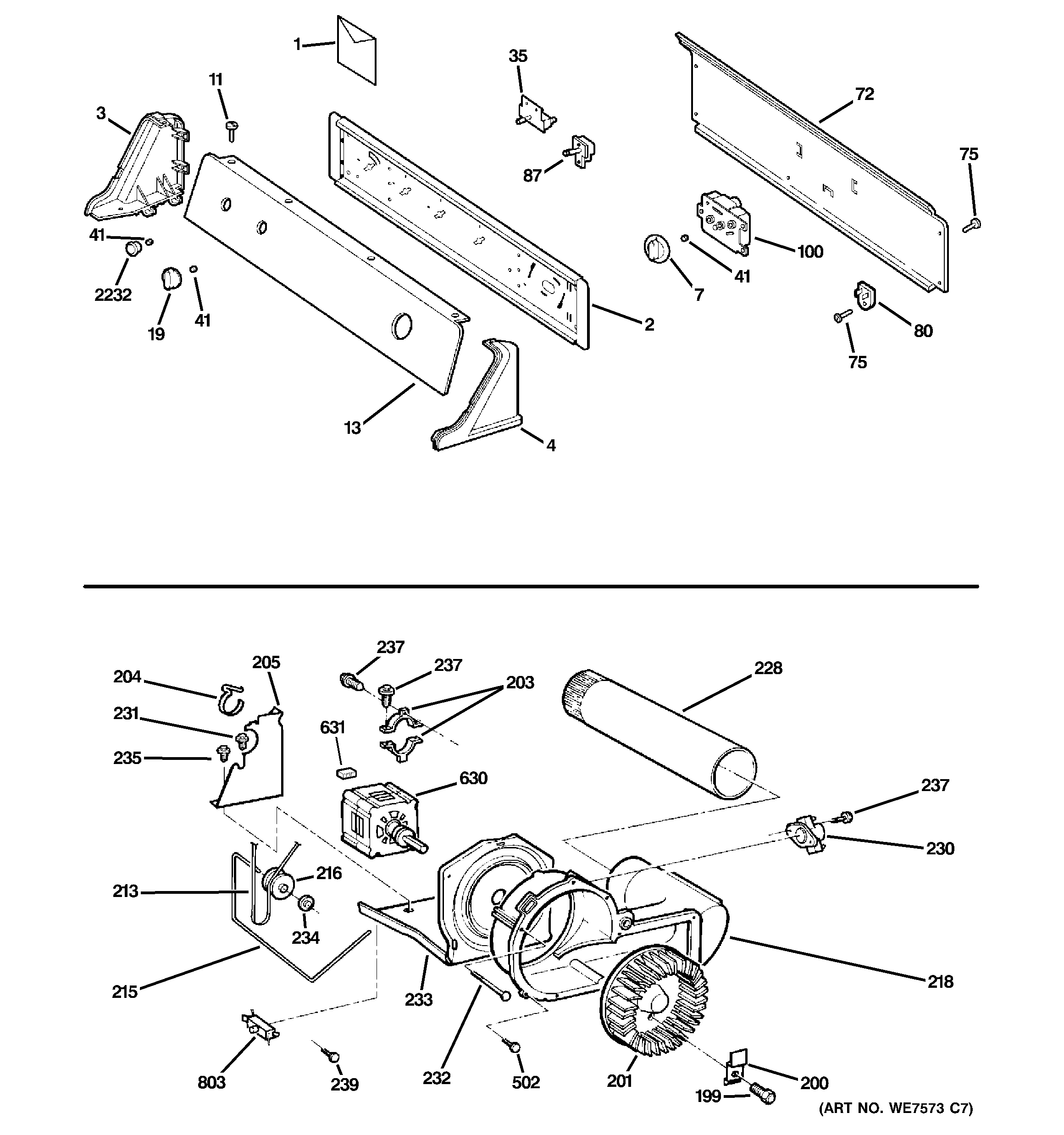

DBLR333EE2CC BACKSPLASH, BLOWER & MOTOR ASSEMBLY

DBLR333EE2CC BACKSPLASH, BLOWER & MOTOR ASSEMBLY

Written by

in

DBLR333EE2CC BACKSPLASH, BLOWER & MOTOR ASSEMBLY

Products

PositionProduct
1GEN 31-16115
1GEN 49-90263
1GEN 31-16135
2GEN WH46X10046
3GEN WE19M1420
4GEN WE19M1421
7KNOB ASM DRYER
11SCREW 8-18 AB FLT 9/16 S
13GEN WE19M1406
19WH01X10060 GE Washer Dryer Control Knob and Clip Assembly
35PUSH TO START SWITCH
41GEN WE01X0980?
72GEN WE20M343
75WE2M173 GE Screw
75WZ4X241D GE Screw Package
80WE4M255 GE Washer Resistor
87WE4M404 GE Electric Rotary Switch 3TEMP
100GEN WE4M322
199WE2M98 GE Screw
200WE1X688 GE Dryer Clamp and Screw
201WE16M15 GE Washer Dryer Blower Wheel
203WE13X200 GE Motor Strap
204WE1X921 GE Motor Strap
205WE13M39 GE Motor Support
213WE03X29897 BELT DRIVE
215WE03X20434 GE Washer Idler Arm
216PULLEY
218WE09X27636 GE Exhaust Blower Gasket
218BLOWER HOUSING
228WE14X20421 GE Exhaust Duct
230WE4M127 GE Thermostat
232WE2M202 GE Screw
233MOTOR PLATE (E-COAT)
234GEN WE2M96?
235WE1M280 GE Screw
237WD02X10057 GE Dishwasher Screw 10-16 x 1
239WR2X9260 GE Refrigerator Screw
502WE2M174 GE Screw #10
630WE17X10010 GE Washer Dryer Drive Motor and Pulley Assembly
631GEN WE1M650
803WD21X10261 GE Dishwasher Interlock Switch
2232GEN WE1M551
