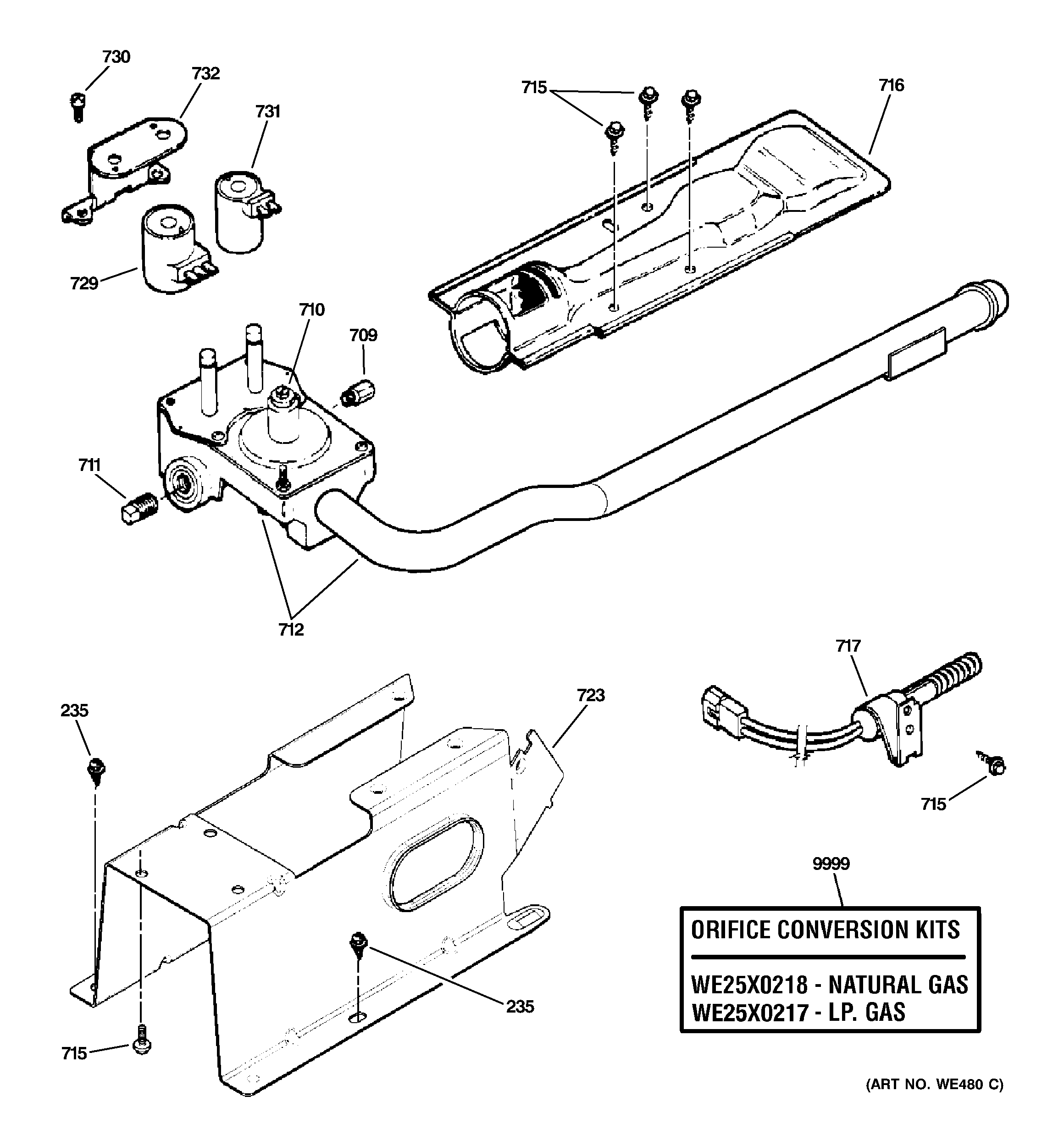

DBLR333GG7CC GAS VALVE & BURNER ASSEMBLY

DBLR333GG7CC GAS VALVE & BURNER ASSEMBLY

Written by

in

DBLR333GG7CC GAS VALVE & BURNER ASSEMBLY

Products

PositionProduct
235WE1M280 GE Screw
709WE1X1148 GE Main Orifice
710WE1X1076 GE Leak Limiter
711GEN 1/8-27 NPT
712WE14M114 GE Gas Valve and Pipe Assembly Natural
715WD2M101 GE Dishwasher Screw
716WE14M104 GE Burner Assembly
717WE04X25996 GE Washer Igniter
723BRACKET GAS VALVE
729WE4X692 GE Gas Valve Solenoid
730WR01X10317 GE Refrigerator Screw 8-32 CA Hex Washer 1/2
731WE4X693 GE Main Coil
732GEN WE13X0169
9999WE25X217 GE LP Natural Gas Conversion Kit
9999WE25X218 GE Conversion Kit
